- Sku: SIM2001
- Vendor: Simplicity

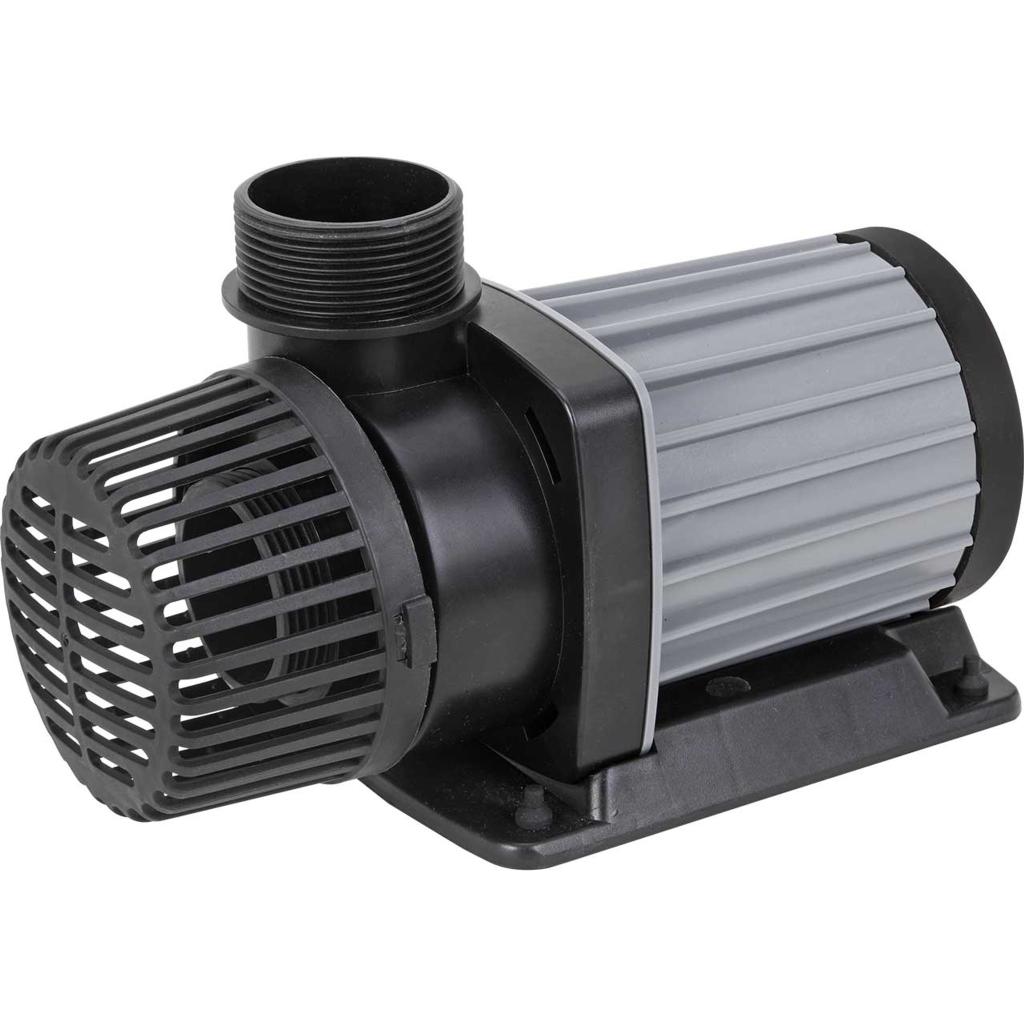

Simplicity DC Return Pump
The Simplicity DC Return Pump is a quiet, energy-efficient, and fully controllable pump for your sump return, closed loop, or manifold. Every model includes a digital controller with adjustable flow and a Feed Mode, runs on safe low-voltage 24V DC, and comes with both threaded and barbed fittings for easy plumbing. Four sizes cover reef and freshwater systems from about 50 to 320 gallons. Explore more of our reef and aquarium gear.
How It Works
A return pump moves water from your sump back up to the display tank. The Simplicity DC pump uses an efficient, controllable DC motor so you can dial in the exact flow your system needs, then run it quietly and cool. The included digital controller sets the flow rate and triggers Feed Mode, and the threaded plus stepped-barb fittings adapt the output to hard PVC or flexible tubing.
Features — All Models

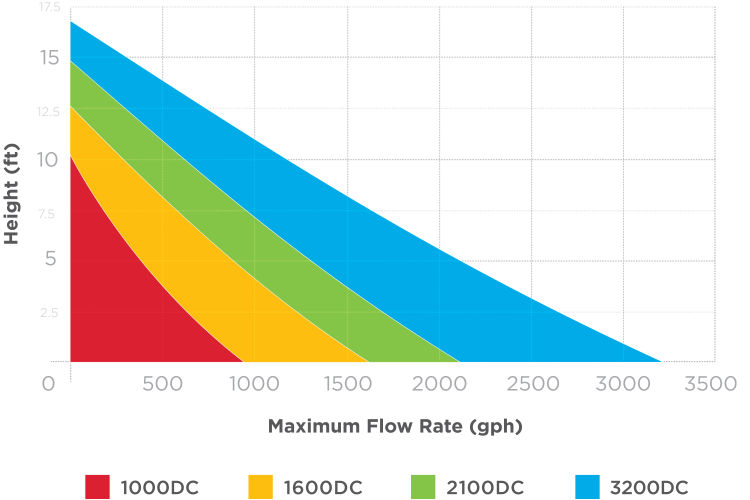

Choose Your Size — Model Comparison
Select a model in the tabs below for its full individual spec sheet.
| Spec | 1000DC | 1600DC | 2100DC | 3200DC |
|---|---|---|---|---|
| Max Flow | 1,000 GPH | 1,600 GPH | 2,100 GPH | 3,200 GPH |
| Max Head | 10 ft | 12 ft | 14 ft | 16 ft |
| Power | 30 W | 42 W | 65 W | 85 W |
| Recommended Tank | 50 to 100 gal | 80 to 160 gal | 105 to 210 gal | 160 to 320 gal |
| Threaded In/Out | 1.0 in | 1.25 in | 1.5 in | 1.5 in |
| Barbed Fittings | 0.75, 1.0 in | 0.75, 1.0, 1.25 in | 0.75, 1.0, 1.25, 1.5 in | 0.75, 1.0, 1.25, 1.5 in |
| Dimensions (LxWxH) | 6.4 x 3.5 x 4.5 in | 8.0 x 4.1 x 5.1 in | 8.5 x 4.1 x 5.1 in | 8.5 x 4.1 x 5.1 in |
| Price | $109.95 | $149.95 | $169.95 | $189.95 |
| SKU | SIM2001 | SIM2003 | SIM2005 | SIM2007 |
Detailed Model Specifications
Click a model below to view its complete specification sheet.
1000DC · 1,000 GPH · 10 ft head
The Simplicity 1000DC is a controllable DC return pump rated for 1,000 GPH at a maximum head of 10 ft, recommended for aquariums around 50 to 100 gal. It includes a digital controller with adjustable flow and a Feed Mode, plus threaded and barbed fittings for flexible plumbing.
| Specification | Value |
|---|---|
| SKU | SIM2001 |
| Price | $109.95 |
| Maximum Flow Rate | 1,000 GPH |
| Maximum Head Pressure | 10 ft |
| Power Consumption | 30 W |
| Power Input | 24V DC |
| Recommended Tank Size | 50 to 100 gal |
| Threaded In / Out | 1.0 in |
| Barbed Fittings | 0.75, 1.0 in |
| Dimensions (L x W x H) | 6.4 x 3.5 x 4.5 in |
| Weight | 3.5 lb |
| Power Cord Length | 6 ft |

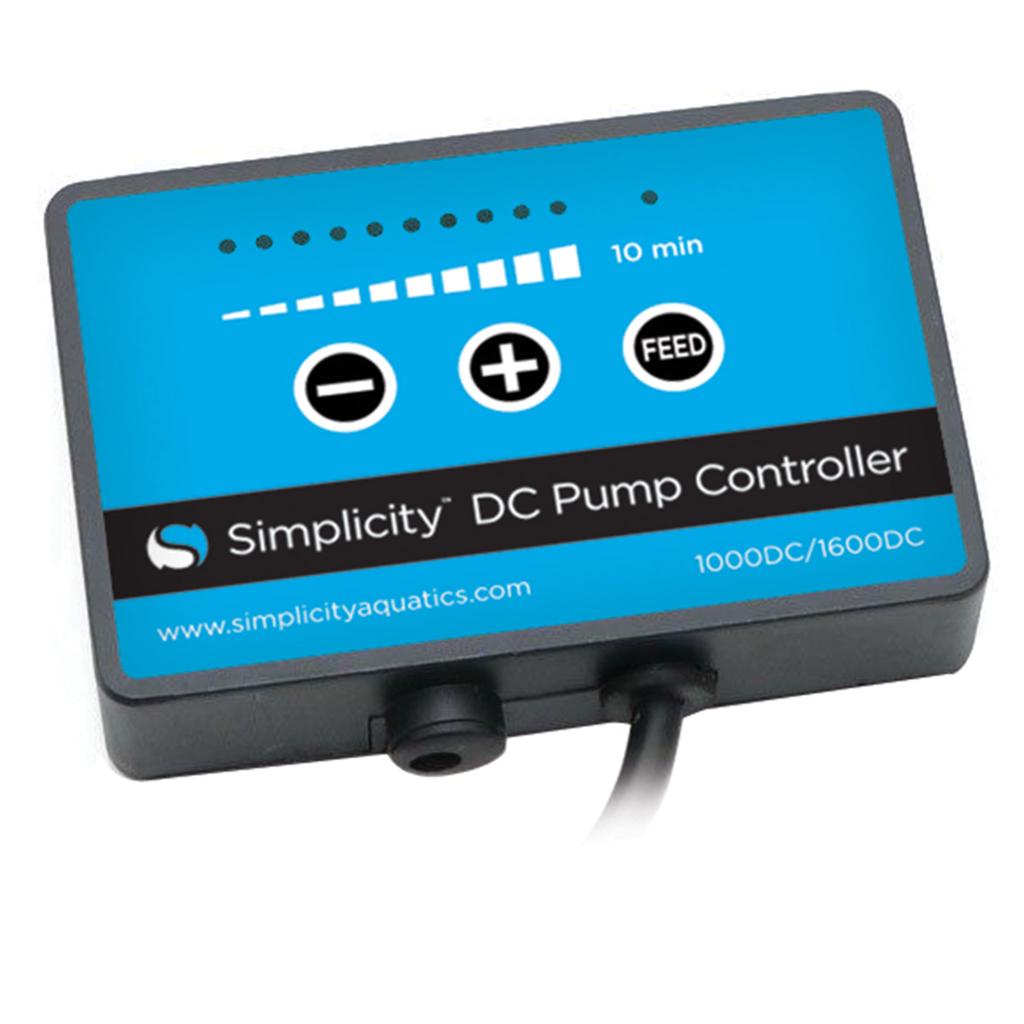

| Controller | Digital controller, adjustable flow + Feed Mode |
| Placement | Submersible only |
| Water Type | Freshwater, saltwater, reef, and brackish |
| Warranty | 3-year prorated manufacturer warranty |
| What is included | Pump, barbed fittings, controller with digital display, power cord, guide |
1600DC · 1,600 GPH · 12 ft head
The Simplicity 1600DC is a controllable DC return pump rated for 1,600 GPH at a maximum head of 12 ft, recommended for aquariums around 80 to 160 gal. It includes a digital controller with adjustable flow and a Feed Mode, plus threaded and barbed fittings for flexible plumbing.
| Specification | Value |
|---|---|
| SKU | SIM2003 |
| Price | $149.95 |
| Maximum Flow Rate | 1,600 GPH |
| Maximum Head Pressure | 12 ft |
| Power Consumption | 42 W |
| Power Input | 24V DC |
| Recommended Tank Size | 80 to 160 gal |
| Threaded In / Out | 1.25 in |
| Barbed Fittings | 0.75, 1.0, 1.25 in |
| Dimensions (L x W x H) | 8.0 x 4.1 x 5.1 in |
| Weight | 5.4 lb |
| Power Cord Length | 6 ft |
| Controller | Digital controller, adjustable flow + Feed Mode |
| Placement | Submersible only |
| Water Type | Freshwater, saltwater, reef, and brackish |
| Warranty | 3-year prorated manufacturer warranty |
| What is included | Pump, barbed fittings, controller, intake screen, power cord, guide |
2100DC · 2,100 GPH · 14 ft head
The Simplicity 2100DC is a controllable DC return pump rated for 2,100 GPH at a maximum head of 14 ft, recommended for aquariums around 105 to 210 gal. It includes a digital controller with adjustable flow and a Feed Mode, plus threaded and barbed fittings for flexible plumbing.
| Specification | Value |
|---|---|
| SKU | SIM2005 |
| Price | $169.95 |
| Maximum Flow Rate | 2,100 GPH |
| Maximum Head Pressure | 14 ft |
| Power Consumption | 65 W |
| Power Input | 24V DC |
| Recommended Tank Size | 105 to 210 gal |
| Threaded In / Out | 1.5 in |
| Barbed Fittings | 0.75, 1.0, 1.25, 1.5 in |
| Dimensions (L x W x H) | 8.5 x 4.1 x 5.1 in |
| Weight | 6.6 lb |
| Power Cord Length | 6 ft |
| Controller | Digital controller, adjustable flow + Feed Mode |
| Placement | Submersible only |
| Water Type | Freshwater, saltwater, reef, and brackish |
| Warranty | 3-year prorated manufacturer warranty |
| What is included | Pump, barbed fittings, controller, intake screen, power cord, guide |
3200DC · 3,200 GPH · 16 ft head
The Simplicity 3200DC is a controllable DC return pump rated for 3,200 GPH at a maximum head of 16 ft, recommended for aquariums around 160 to 320 gal. It includes a digital controller with adjustable flow and a Feed Mode, plus threaded and barbed fittings for flexible plumbing.
| Specification | Value |
|---|---|
| SKU | SIM2007 |
| Price | $189.95 |
| Maximum Flow Rate | 3,200 GPH |
| Maximum Head Pressure | 16 ft |
| Power Consumption | 85 W |
| Power Input | 24V DC |
| Recommended Tank Size | 160 to 320 gal |
| Threaded In / Out | 1.5 in |
| Barbed Fittings | 0.75, 1.0, 1.25, 1.5 in |
| Dimensions (L x W x H) | 8.5 x 4.1 x 5.1 in |
| Weight | 7.2 lb |
| Power Cord Length | 6 ft |
| Controller | Digital controller, adjustable flow + Feed Mode |
| Placement | Submersible only |
| Water Type | Freshwater, saltwater, reef, and brackish |
| Warranty | 3-year prorated manufacturer warranty |
| What is included | Pump, barbed fittings, controller with digital display, power cord, guide |
Which Model Is Right for You?
1000DC — About 1,000 GPH and 10 ft of head for tanks around 50 to 100 gallons. A quiet return for nano to mid systems.
1600DC — About 1,600 GPH and 12 ft of head for 80 to 160 gallon systems.
2100DC — About 2,100 GPH and 14 ft of head for 105 to 210 gallon systems.
3200DC — About 3,200 GPH and 16 ft of head for large 160 to 320 gallon systems.
Sizing Your Return Pump
Pick your pump by the total head height of your return, not just the flow number. Head is the vertical distance the pump lifts water plus the losses from elbows, unions, and a nozzle, so the real flow at the top of your tank is lower than the maximum rating. Choose a model whose head comfortably exceeds your run and whose max flow gives you the turnover you want after those losses.
FAQ
Is a controller included?
Yes. Every model ships with a digital controller that sets the flow rate and has a Feed Mode.
Does it run in the sump?
Yes. These are submersible pumps designed to run in a sump. Do not run the pump dry.
What fittings come with it?
A threaded union sized to the model plus a set of stepped barbed fittings, so it adapts to PVC or flexible tubing.
Freshwater or saltwater?
Both. The Simplicity DC pump is rated for freshwater, saltwater, reef, and brackish systems.
