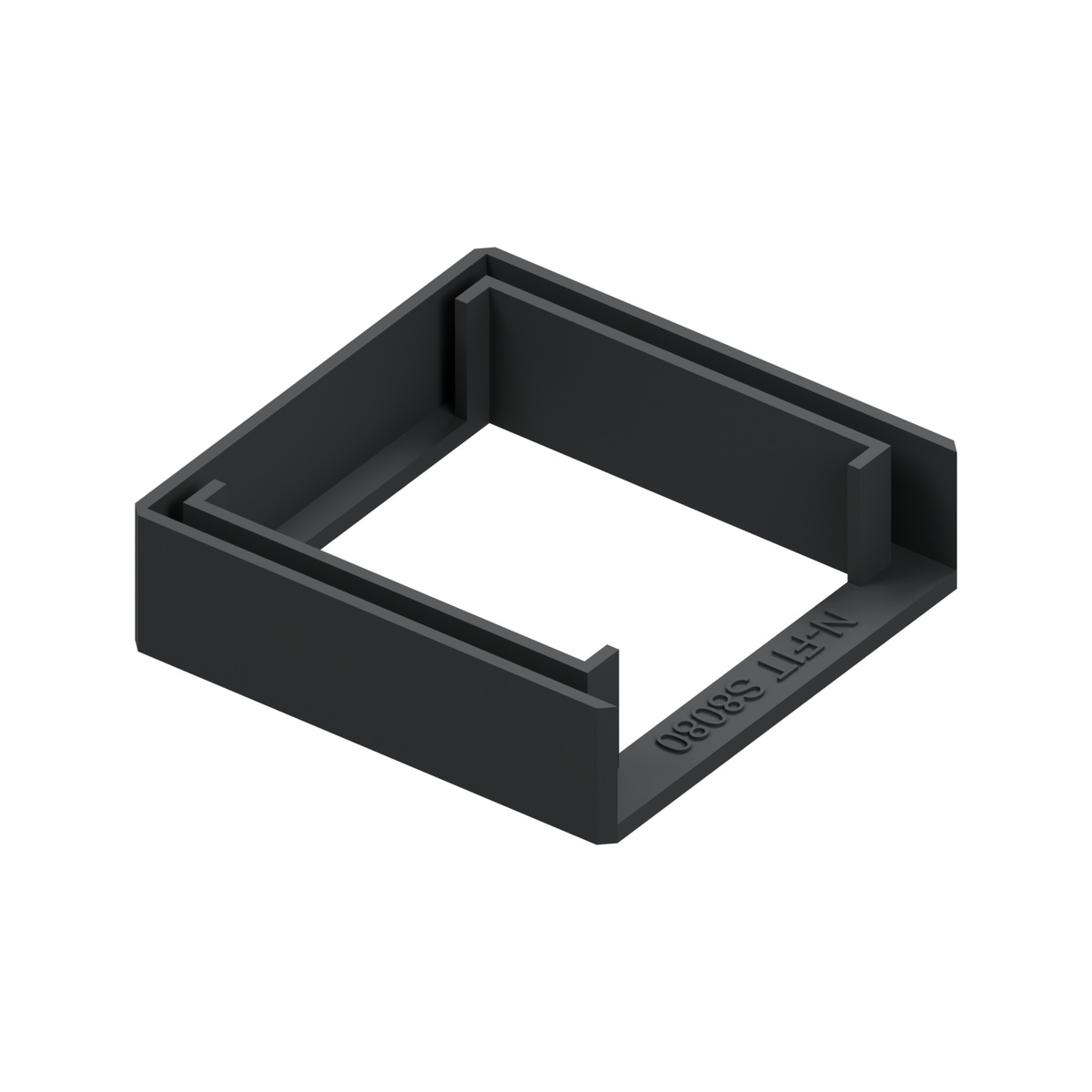

N-Fit Nano Adapter S8080, 80 by 80 mm opening, for Waterbox 10 to 25, UNS Dual AIO, Landen and Maxspect Dice AIO 12

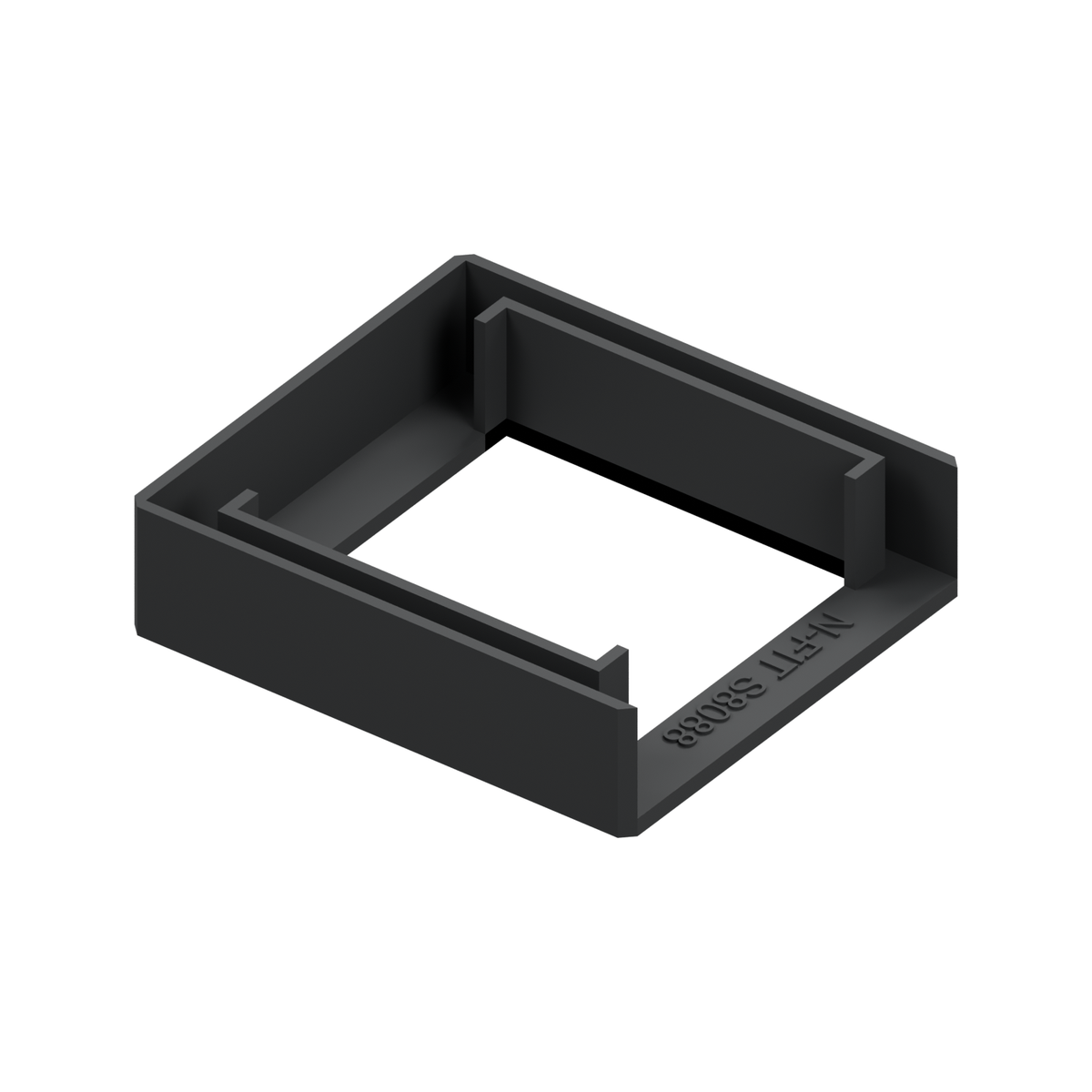

N-Fit Nano Adapter S8088, 80 by 88 mm opening, for HelloReef 15 and IceCap 20

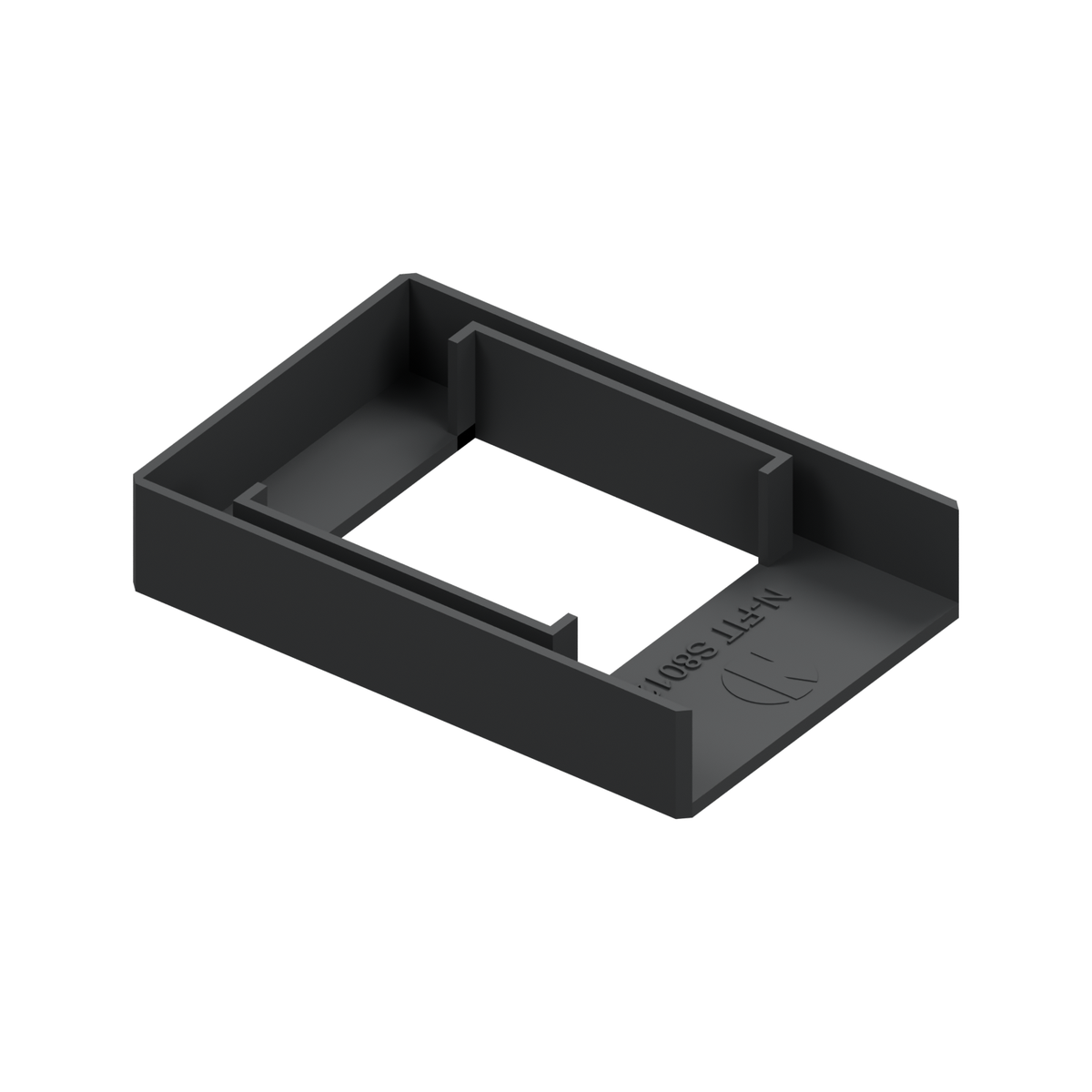

N-Fit Nano Adapter S80120, 80 by 120 mm opening, for HelloReef 33 and Waterbox 35.2, 40.2 and 50.3
N-Fit Nano Adapter S8075 for AquaTop 24 and 40 and the Aqua One NanoReef 80

About N-Fit Nano Adapter

N-Fit Nano Adapters let a N-Clear Nano Automatic Fleece Roller Filter drop into the rear chamber of an all-in-one aquarium it was not natively sized for. Each adapter is a single moulded frame that bridges the gap between your chamber opening and the filter body, with the part number moulded into the side. One adapter per filter. Browse the rest of our filter media and cartridges.

Check your model before ordering. Innovative Marine 10, 14, 15, 20 and 25 need no adapter at all. Everything else needs the specific part matched to its chamber opening, so pick from the fitting list below rather than by tank brand alone.

Models We Stock

Adapter Opening Fits these tanks
S8080 80 x 80 mm Waterbox 10 to 25; UNS Dual AIO 30A, 35A, 40A, 45A, 60A, 75A; UNS 75SA; Landen 30C, 35C, 40C, 45P; Maxspect Dice AIO 12
S8088 80 x 88 mm HelloReef 15; IceCap 20
S80120 80 x 120 mm HelloReef 33; Waterbox 35.2, 40.2, 50.3 rear chamber AIO
S8075 Chamber openings of about 75 x 78 mm or 77 x 83 mm AquaTop 24 and 40; Aqua One NanoReef 80

UNS 75SA note from Nature Dimensions: use S8080 for an approximately 80 x 80 mm chamber opening. An opening nearer 80 x 85 mm takes the S8080L instead, which we do not stock.

S8075 note from Nature Dimensions: one physical adapter covers AquaTop 24 and 40 and the Aqua One NanoReef 80. Nature Dimensions publishes the chamber openings it supports rather than a single nominal size, and lists the reviewed NanoReef 80 versions at roughly 75 x 78 mm or 77 x 83 mm. Measure your chamber opening, support ledge and the clearance around the filter and used fleece roll before ordering.

Specifications

Specification Value
Sold as One adapter
Quantity needed One per N-Clear Nano filter body. A Main plus Extension dual setup needs two
Compatible filter N-Clear Nano Automatic Fleece Roller Filter
Available openings 80 x 80 mm (S8080), 80 x 88 mm (S8088), 80 x 120 mm (S80120), plus the S8075 for AquaTop and Aqua One NanoReef 80 chambers
No gasket, and that is correct. Nature Dimensions has revised the N-Fit line, and current adapters no longer include a silicone gasket layer. Nothing is missing from your package, and installation is unaffected.

Tanks That Do Not Take a Nano

These are not current N-Clear Nano fits, with or without an adapter: Waterbox 50 Peninsula, Fluval AIO, BioCube, Red Sea Max Nano, Lifegard AIO, ReefCasa Pico and Tide, JBJ 10, Tideline 7, 11 and 13, and older UNS Dual AIO models whose chambers are not 3.2 in by 3.2 in.

Nature Dimensions also produces N-Fit adapters for several tanks we do not stock, including the Aqua One AquaNano 60, AquaManta, ReefCasa Studio and Cube, Fiji Cube, JBJ 15 and 20, Tideline 31, 47 and 62, Blue Marine, YiDing, Mantis Rubicon, IceCap 45 and 60 AIO, and UNS 90LA. If your tank is on that list, or is not listed anywhere here, contact us with the exact model and your chamber measurements before ordering.

FAQ

How do I know which adapter I need?
Match your exact tank model in the fitting list above, not just the brand. Chamber openings differ between sizes within the same product line. If you are unsure, measure the rear chamber opening and compare it against the three openings we stock.

Do I need an adapter for an Innovative Marine tank?
No. The N-Clear Nano is a direct fit on Innovative Marine 10, 14, 15, 20 and 25.

I am running a Main and an Extension unit. How many adapters?
Two, one per filter body.

Does the adapter come with the filter?
No. Adapters are sold separately from the N-Clear Nano filter.

My tank is modified. Will it still fit?
Possibly, but we cannot promise it. Fit depends on the chamber opening, the support ledge, and clearance around the filter and the used fleece roll. Send us the measurements and we will check against the list.
