- Sku: 1020015
- Vendor: ATI

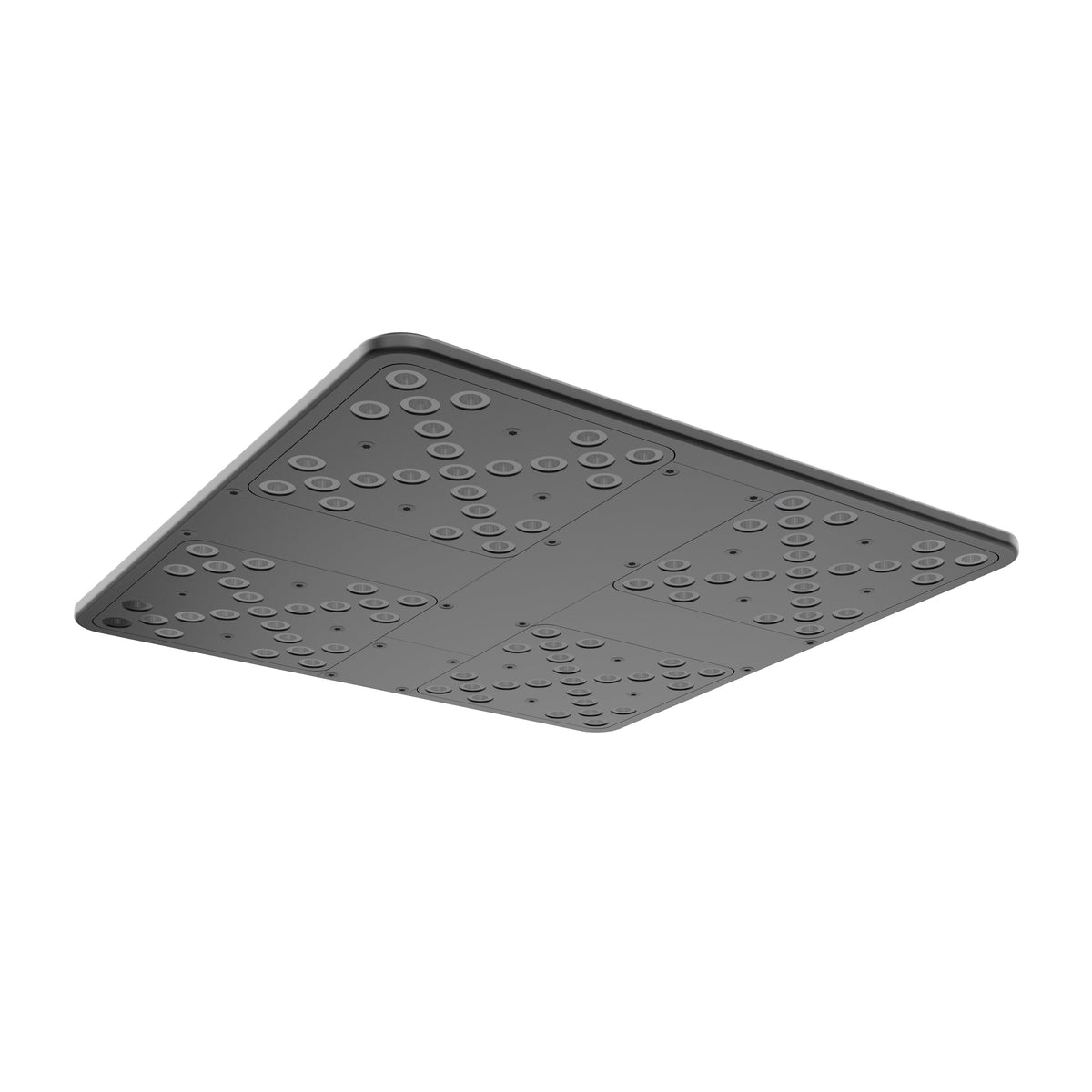

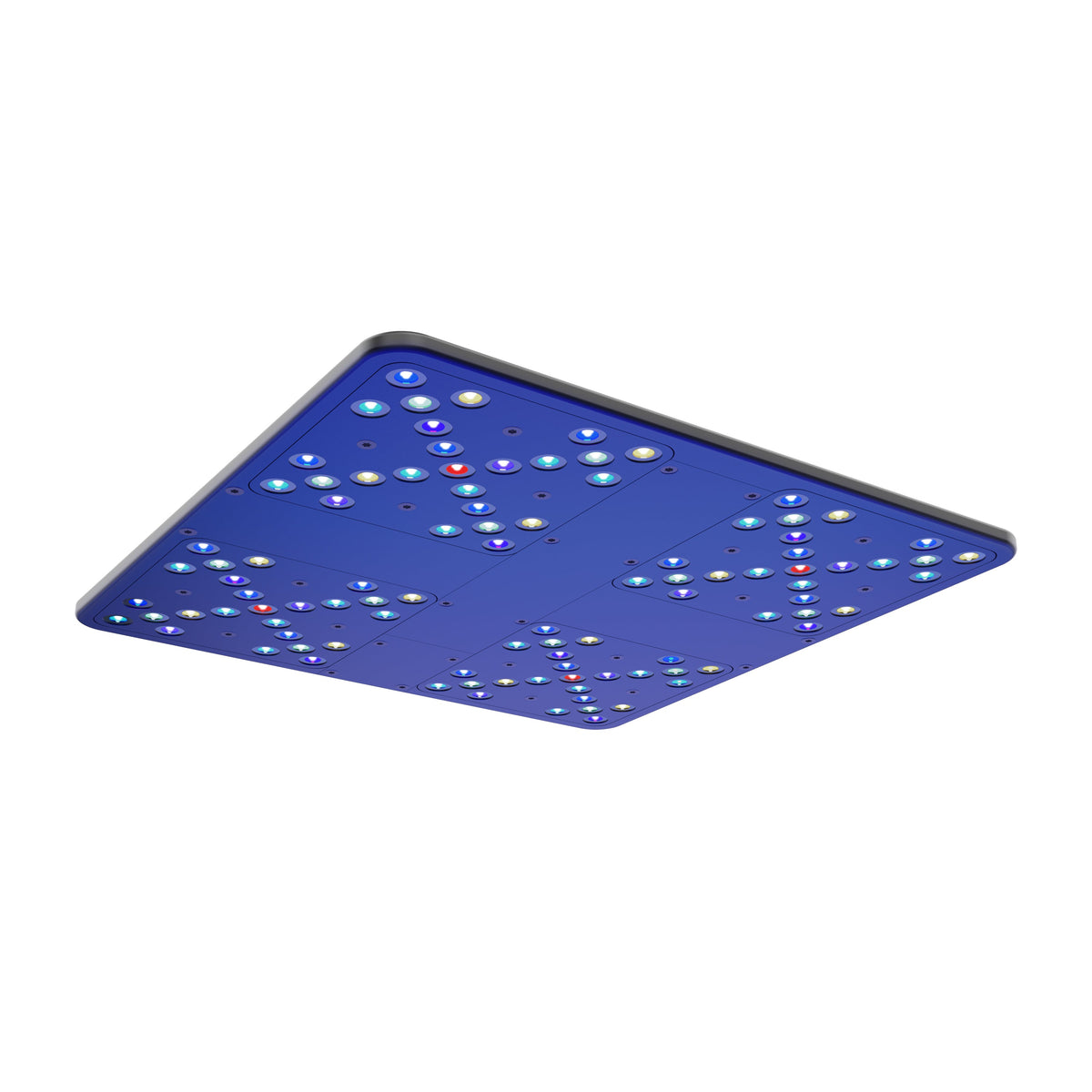

ATI Straton X LED Reef Light
The ATI Straton X is a 150 W full-spectrum reef LED in a 9 mm aluminum housing, made entirely in Germany. It's fanless and silent, uses 100 LEDs with individual flush-mounted reflectors to cut glare, and is controlled from the ATI Reef Pilot app with live PAR and live energy readouts. Mounting hardware is sold separately: choose the Straton X Mounting Arm or Hanging Kit.
Why the Straton X

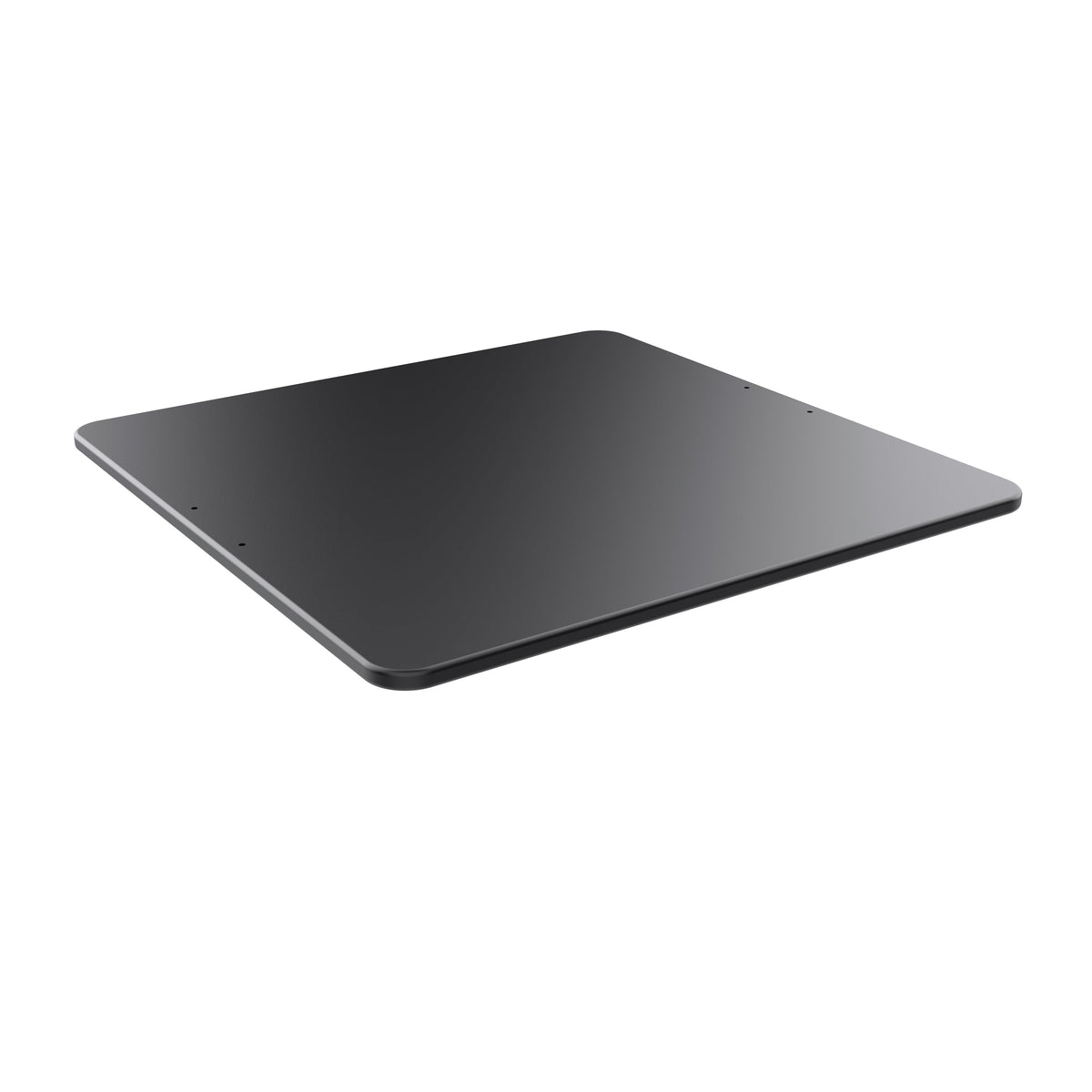

- Ultra-slim: Only 9 mm tall, in a precision-milled aluminum housing that also serves as the heat sink.
- Silent: No fans at all, so no noise and no fan wear.
- Glare-free: Each of the 100 LEDs has its own flush-mounted reflector that directs light into the tank.
- Hybrid reef spectrum: Runs anything from bright daylight to intense blue; ATI boosted the blue for fluorescence and improved white and cyan-white for brightness.
- Soft Shadow Technology: 100 light sources over a large area light corals from several sides, reducing hotspots and self-shading, with a natural shimmer effect.
- Overdrive mode: Individual channels can run above 100% when others are below maximum, within the fixture's power and thermal limits.

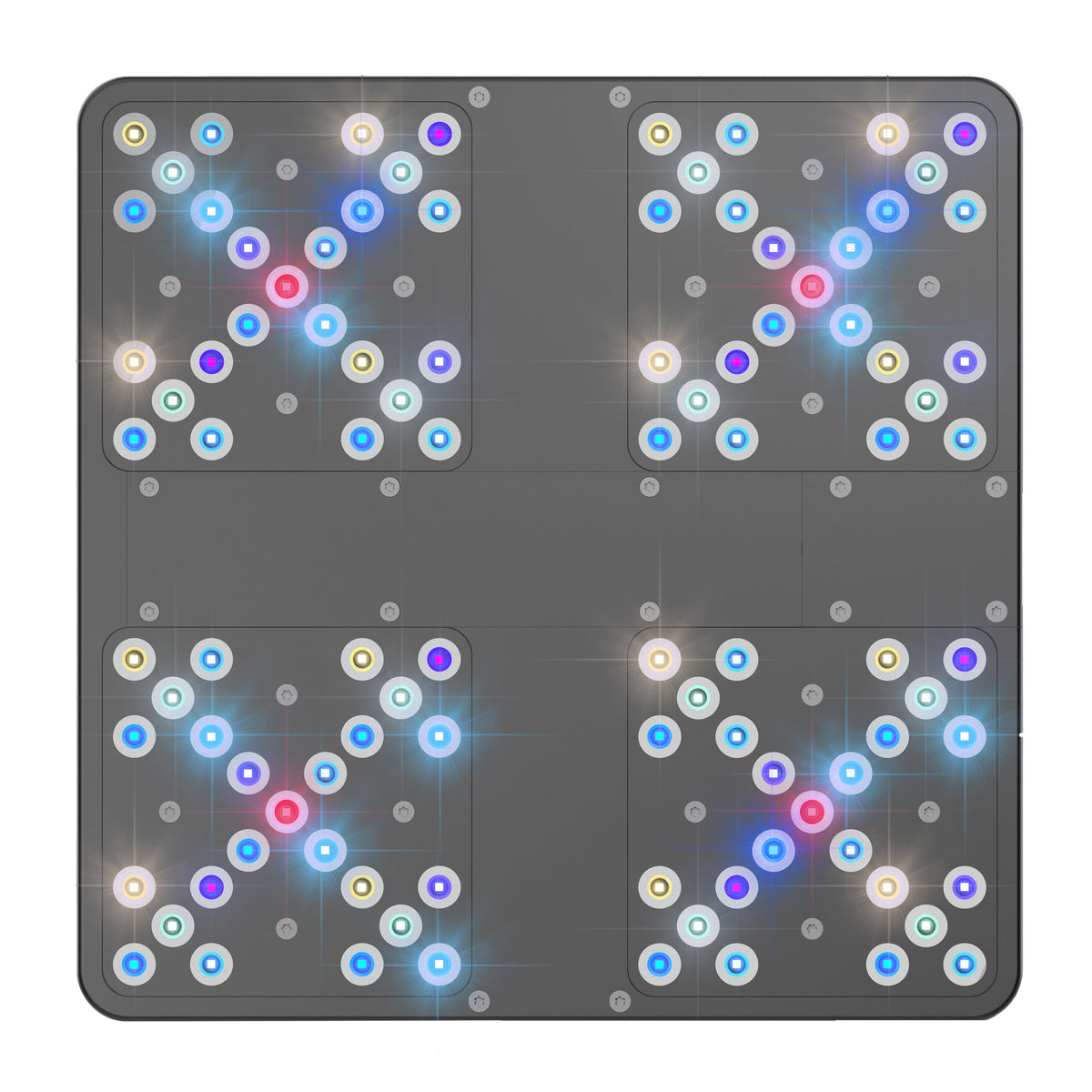

LED configuration
| LED color | Count | ATI's stated effect |
|---|---|---|
| UV 405 nm | 8 | Green fluorescent pigments |
| Violet 420 nm | 8 | Green fluorescent pigments plus usable photosynthetic light |
| Royal blue 450 nm | 20 | Green and red fluorescent pigments; high photosynthetic light |
| Blue 470 nm | 28 | Red, orange and yellow fluorescent pigments; highest photosynthetic light |
| Cyan white | 16 | Pocilloporin pigments in many SPS; natural spectrum |
| White | 16 | Pocilloporin pigments; natural brightness |
| Red 625 nm | 4 | Red tones and contrast |
Measured performance (ATI)
- Max PAR: 1,800 at 20 cm (8 in)
- Average PAR 390 over 60 x 60 cm at 60 cm (24 x 24 in at 24 in), for 2.6 PAR per watt
- SPS area (200+ PAR): 85 cm (33 in) diameter at 60 cm, about 0.57 m² (6 sq ft)
- LPS area (100+ PAR): 100 cm (39 in) diameter at 60 cm, about 0.79 m² (8.5 sq ft)
ATI Reef Pilot app
- iOS and Android control of light curves and spectra, with smooth transitions and precise intensity
- Templates from leading coral farmers
- Individual or group control of multiple lights
- LIVE ENERGY: real-time power consumption
- LIVE PAR: PAR values at different water depths
Mounting
Recommended height is 25 to 30 cm (10 to 12 in) above the water. Mount it with the Straton X Mounting Arm (back-glass mount, rimless tanks) or the Straton X Hanging Kit (ceiling suspension); ATI also offers a mounting rail. Mounting hardware is not included.
Specifications
| Brand | ATI |
| Dimensions | 364 x 364 x 9 mm (14.3 x 14.3 x 0.35 in) |
| Weight | 2,500 g (fixture) |
| Material | Aluminum, Galaxy Grey powder coat, fanless |
| LEDs | 100 high-power LEDs, 7 colors, 100 reflectors |
| Power | 150 W max usage; power supply input 100 to 240 VAC, 50/60 Hz, 160 W max |
| Recommended height | 25 to 30 cm (10 to 12 in) above the water |
| Control | ATI Reef Pilot app (iOS, Android) |
| In the box | Straton X light and power supply |
| Made in | Germany |
| UPC | 4260216216619 |
Frequently Asked Questions
Is a mount included? No. Buy the Straton X Mounting Arm or Hanging Kit separately.
Does it have a fan? No, it's completely fanless and silent.
How much area does one light cover? ATI measures 200+ PAR over an 85 cm (33 in) circle and 100+ PAR over a 100 cm (39 in) circle at 60 cm (24 in).
