IceCap Magnetic Heater Mount
The IceCap Magnetic Heater Mount replaces the suction cups that come with every aquarium heater, the ones that harden, let go and drop the heater into the sand or against a sump baffle. A wet-side collar holds the heater body and a rubber-coated dry-side magnet clamps it through the glass, so the element stays put, stays off the panel and stays easy to lift out for cleaning. Choose the Single for one heater or the Dual for a two-heater backup setup. Pair it with our 50W, 100W, 200W, 300W IceCap titanium heater elements or browse the rest of our aquarium equipment.
How It Works

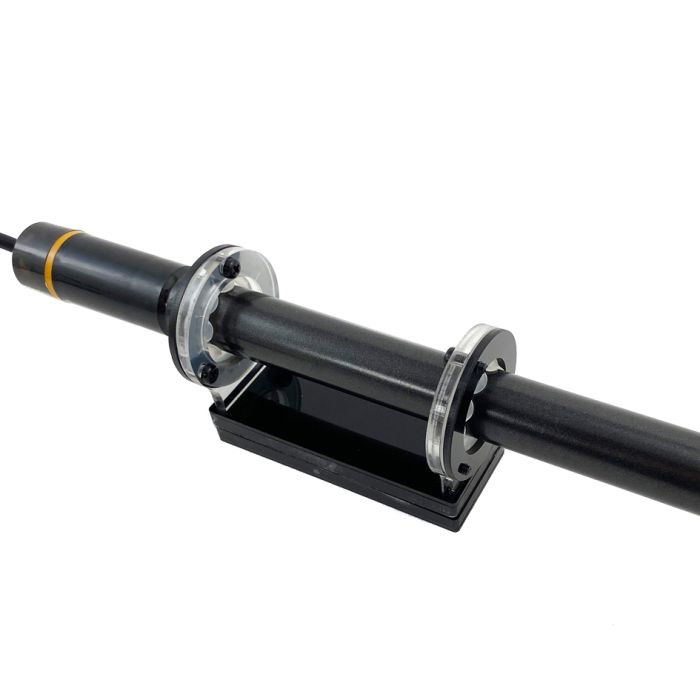

The wet-side bracket slips over a heater body up to 1 in in diameter and sits against the inside of the tank or sump. The matching dry-side magnet goes on the outside of the glass and pulls the bracket tight. The Single is rated for panels up to 3/8 in thick, the Dual for panels up to 1/2 in. Because the collar holds the heater a short distance off the glass, heat spreads into the water instead of into the panel, and there is nothing to peel off or re-stick when you want to move it.
Features on Both Sizes
Choose Your Size
Select a size in the tab section below for its full spec sheet.
| Spec | Single | Dual |
|---|---|---|
| Heaters held | 1 | 2 |
| Max heater diameter | 1 in | 1 in |
| Max glass or acrylic thickness | 3/8 in | 1/2 in |
| Magnet | Encapsulated neodymium pad | Rubber-coated rare-earth magnet |
| SKU | IC-HH-01 | IC-HH-02 |
Detailed Specifications
Click a size below to view its full specification sheet.
Single · IC-HH-01 · one heater
One collar, one magnet. The right choice for a single heater in a display tank or a small sump, and for the second heater in a system that already has a mount.
| Specification | Value |
|---|---|
| SKU | IC-HH-01 (also listed as IC-HBSM) |
| Capacity | One heater up to 1 in outside diameter |
| Max panel thickness | 3/8 in glass or acrylic |
| Magnet | Fully encapsulated neodymium rare-earth cell |
| Material | Sealed reef-safe polymer |
| Weight | 9.6 oz |
| Water type | Saltwater and freshwater |
| In the box | Wet-side 1 in heater collar ring, dry-side magnetic clamping pad |

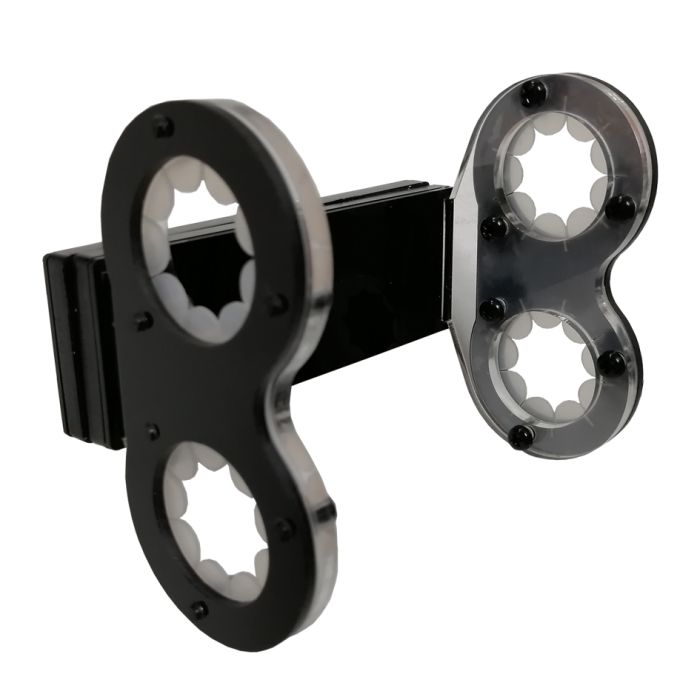

Dual · IC-HH-02 · two heaters
Two heater positions on one bracket, with a stronger magnet rated for thicker panels. Built for the redundancy setup most reefers run: two smaller heaters on a controller instead of one big one.
| Specification | Value |
|---|---|
| SKU | IC-HH-02 (factory part IC-MHB02) |
| Capacity | Two heaters up to 1 in outside diameter |
| Max panel thickness | 1/2 in glass or acrylic |
| Magnet | Sealed rare-earth magnetic core array, rubber-coated dry side |
| Material | Solid reef-safe injection-molded polymer |
| Water type | Saltwater and freshwater |
| In the box | Wet-side dual bracket frame, rubber-coated dry-side magnet mount |
Which Size Is Right for You?
Single for one heater, or for tanks with glass up to 3/8 in thick.
Dual for two heaters side by side on a controller, and for sumps or displays with glass up to 1/2 in thick.
Setup Tips
Wipe the glass clean inside and out before you mount it. Place the bracket where the heater will stay fully submerged even after evaporation, ideally in a sump chamber with steady flow, and keep the element clear of acrylic baffles, sand and rock. Give the heater 15 minutes to cool before you lift it out of the collar for cleaning.
Recommended Pairings
- IceCap Titanium Heater Elements: 50W, 100W, 200W, 300W.
- IceCap Heater Controller, run two heaters for redundancy with one setpoint.
- Eheim, a glass heater that fits the 1 in collar.
- IceCap Dual Aquarium Heater Holder, the suction-cup bracket version for two heaters.
- Sumps to mount it in: IceCap 15 Reef Sump V2, Eshopps Aqua-Fuge Refugium Sump, Eshopps Reef Sump 5th Gen.
FAQ
Will it hold through thick glass?
The Single is rated for panels up to 3/8 in. The Dual is rated up to 1/2 in. Both work on glass or acrylic.
What heater diameter fits?
Up to 1.0 in outside diameter, which covers most glass and titanium heater bodies. Measure a heater with a thick guard before buying.
Are the magnets safe in saltwater?
Yes. The magnets are fully sealed in polymer, so there is no exposed metal to corrode.
Can I use it in a freshwater tank?
Yes. It is rated for both saltwater and freshwater.
Does it come with a heater?
No. It is the mount only.
