Eshopps Reef Sump 5th Gen
The Eshopps Reef Sump, 5th Generation is a clean, modern sump for reef tanks from 10 to 180 gallons. A white body with blue trim, a rectangular filter sock at the intake, an open skimmer chamber with an adjustable water level plate, a built-in refugium section and a return chamber, plus a probe holder and dosing line holders in the top bracing. Four sizes from 18 to 36 in long, all 14 in tall. Browse the rest of our sumps, skimmers and filtration and the return pumps and plumbing that finish the build. Want a bigger refugium? See the Eshopps Aqua-Fuge.
How It Works
Drain water from your overflow enters the intake chamber and passes through the rectangular filter sock, which catches detritus and uneaten food before it reaches your equipment. It flows into the skimmer chamber, where the adjustable water level plate holds the depth your protein skimmer wants no matter how much water sits in the return section. From there it passes through the refugium section, a spot for macroalgae, rock rubble or media, and into the return chamber where your pump sends it back to the display. Bracing across the top keeps the panels rigid and carries the probe holder and dosing line holders.
Features on Every Model
Choose Your Model
Select a model in the tab section below for its full spec sheet.
| Spec | RS-75 | RS-100 | RS-200 | RS-300 |
|---|---|---|---|---|
| Tank size | 10 to 75 gal | 40 to 90 gal | 55 to 120 gal | 90 to 180 gal |
| Footprint (L x W x H) | 18 x 13 x 14 in | 24 x 14 x 14 in | 30 x 14 x 14 in | 36 x 16 x 14 in |
| Sump volume | 14 gal | 20 gal | 25 gal | 35 gal |
| Refugium volume | 5 gal | 4 gal | 5 gal | 10 gal |
| Skimmer chamber | 7.5 x 7.5 in | 7 x 13.5 in | 7 x 13.5 in | 7 x 15.5 in |
| Return chamber | 7.5 x 5 in | 4 x 13.5 in | 5 x 13.5 in | 6 x 15.5 in |
| Drain intake | Single | Dual | Dual | Dual |
| Dosing line holders | 3 | 3 | 4 | 4 |
| Item number | 89124 | 89134 | 89144 | 89154 |
Detailed Model Specifications
Click a model below to view its full specification sheet.

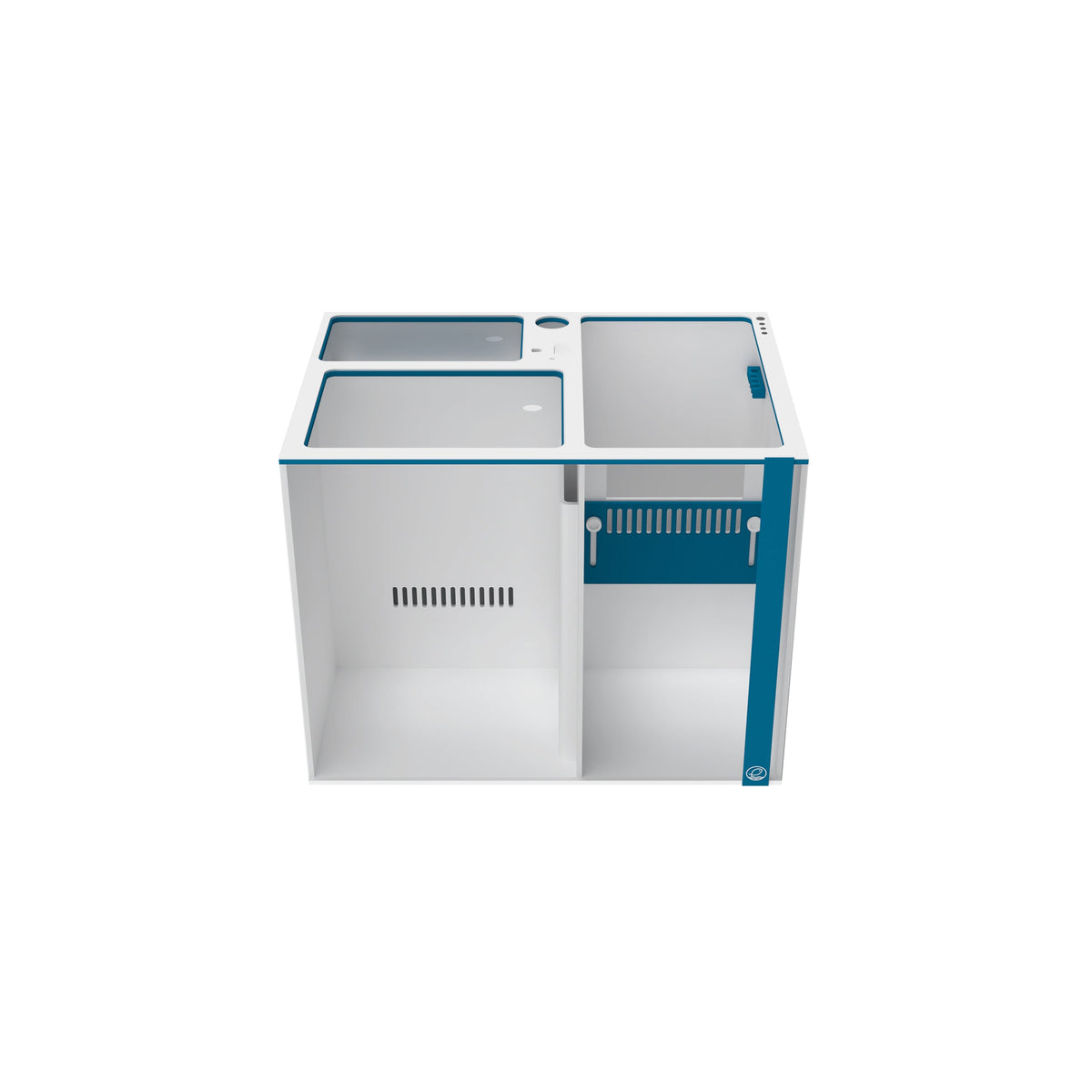

RS-75 · 10 to 75 gal · 14 gal sump
The compact Reef Sump for nano and mid-size reefs up to 75 gallons. At 18 in long and 14 in tall it fits the stands that come with 20 to 40 gallon tanks, with a single drain intake, a 5 gallon refugium section and a 7.5 x 7.5 in skimmer chamber sized for nano in-sump skimmers.
| Specification | Value |
|---|---|
| Item number | 89124 |
| Recommended tank size | 10 to 75 gal (38 to 284 L) |
| Footprint (L x W x H) | 18 x 13 x 14 in (457 x 330 x 356 mm) |
| Total sump volume | 14 gal (53 L) |
| Refugium volume | 5 gal (19 L) |
| Skimmer chamber | 7.5 x 7.5 in (190 x 190 mm) |
| Return chamber | 7.5 x 5 in (190 x 127 mm) |
| Drain intake | Single |
| Dosing line holders | 3 lines |
| Filter sock | One rectangular filter sock included |
| Water level | Adjustable plate for the skimmer chamber |
| In the box | RS sump with top bracing, probe holder and dosing holders, one rectangular filter sock |

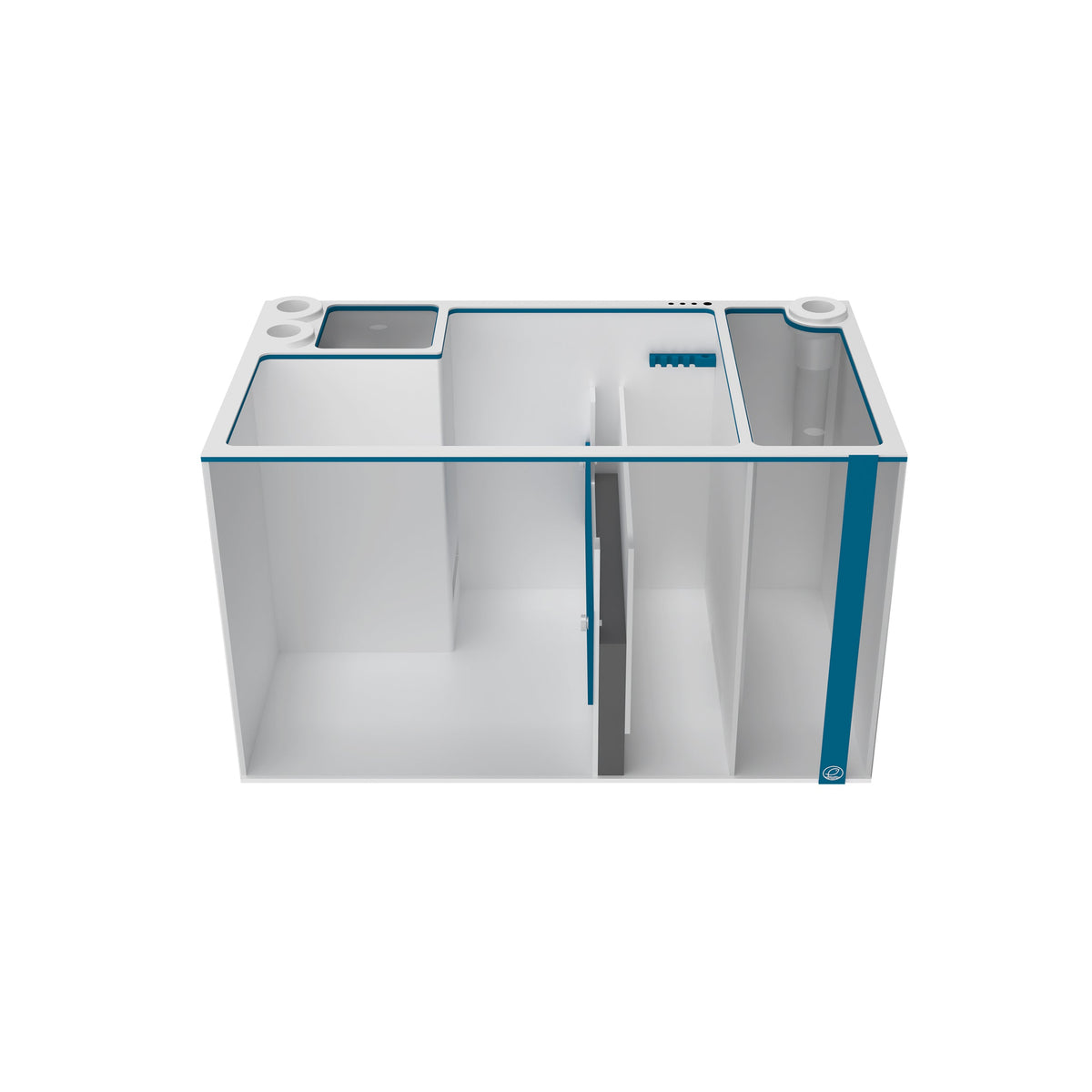

RS-100 · 40 to 90 gal · 20 gal sump
The 24 in Reef Sump for 40 to 90 gallon tanks and 4 foot stands. Dual drain intakes, 20 gallons of volume and a 7 x 13.5 in skimmer chamber that takes most compact in-sump skimmers. The 4 x 13.5 in return section suits a slim DC return pump.
| Specification | Value |
|---|---|
| Item number | 89134 |
| Recommended tank size | 40 to 90 gal (151 to 341 L) |
| Footprint (L x W x H) | 24 x 14 x 14 in (610 x 356 x 356 mm) |
| Total sump volume | 20 gal (75 L) |
| Refugium volume | 4 gal (15 L) |
| Skimmer chamber | 7 x 13.5 in (178 x 343 mm) |
| Return chamber | 4 x 13.5 in (102 x 343 mm) |
| Drain intake | Dual |
| Dosing line holders | 3 lines |
| Filter sock | One rectangular filter sock included |
| Water level | Adjustable plate for the skimmer chamber |
| In the box | RS sump with top bracing, probe holder and dosing holders, one rectangular filter sock |

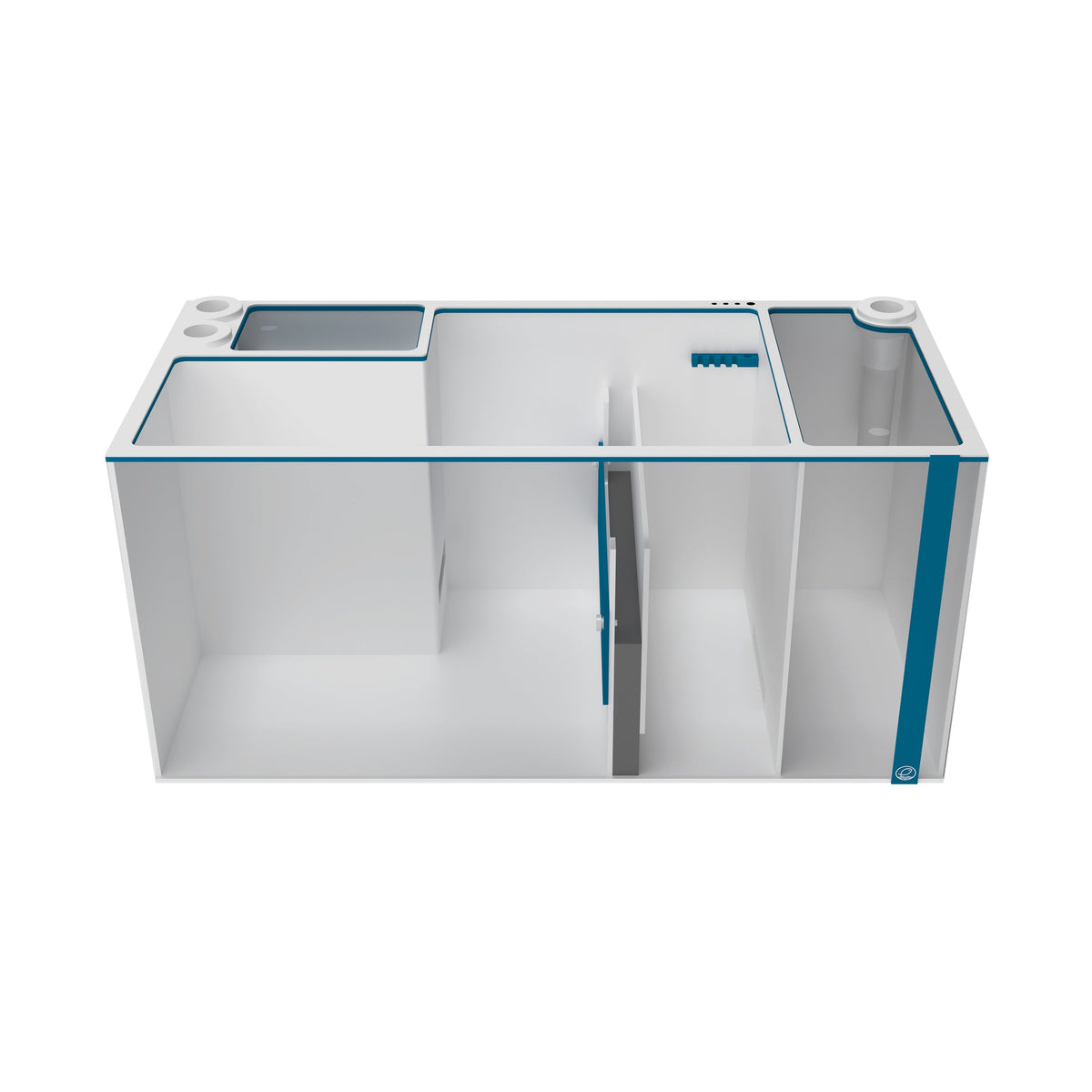

RS-200 · 55 to 120 gal · 25 gal sump
The 30 in Reef Sump for 55 to 120 gallon systems. Dual drain intakes, 25 gallons, a 5 gallon refugium section, four dosing line holders and a wider 5 x 13.5 in return chamber for a larger return pump.
| Specification | Value |
|---|---|
| Item number | 89144 |
| Recommended tank size | 55 to 120 gal (208 to 454 L) |
| Footprint (L x W x H) | 30 x 14 x 14 in (762 x 356 x 356 mm) |
| Total sump volume | 25 gal (95 L) |
| Refugium volume | 5 gal (19 L) |
| Skimmer chamber | 7 x 13.5 in (178 x 343 mm) |
| Return chamber | 5 x 13.5 in (127 x 343 mm) |
| Drain intake | Dual |
| Dosing line holders | 4 lines |
| Filter sock | One rectangular filter sock included |
| Water level | Adjustable plate for the skimmer chamber |
| In the box | RS sump with top bracing, probe holder and dosing holders, one rectangular filter sock |

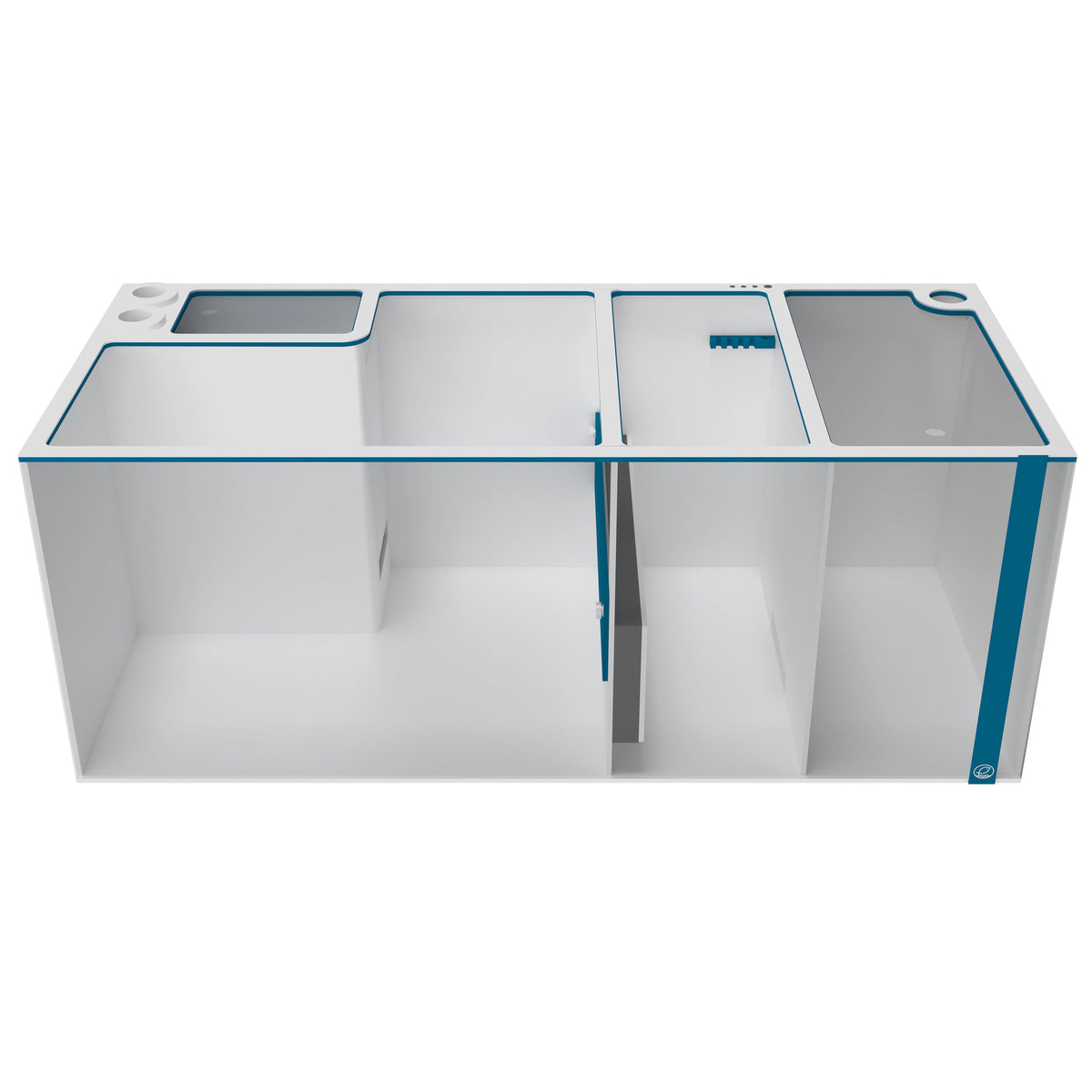

RS-300 · 90 to 180 gal · 35 gal sump
The full-size Reef Sump for 90 to 180 gallon displays and 6 foot stands. Dual drain intakes, 35 gallons, a 10 gallon refugium section for a serious chaeto crop, four dosing line holders and a 6 x 15.5 in return chamber.
| Specification | Value |
|---|---|
| Item number | 89154 |
| Recommended tank size | 90 to 180 gal (341 to 681 L) |
| Footprint (L x W x H) | 36 x 16 x 14 in (914 x 406 x 356 mm) |
| Total sump volume | 35 gal |
| Refugium volume | 10 gal (38 L) |
| Skimmer chamber | 7 x 15.5 in (178 x 394 mm) |
| Return chamber | 6 x 15.5 in (152 x 394 mm) |
| Drain intake | Dual |
| Dosing line holders | 4 lines |
| Filter sock | One rectangular filter sock included |
| Water level | Adjustable plate for the skimmer chamber |
| In the box | RS sump with top bracing, probe holder and dosing holders, one rectangular filter sock |
Which Model Is Right for You?
RS-75 for 10 to 75 gallon tanks and small stands. Single intake, 14 gallons, nano skimmer chamber.
RS-100 for 40 to 90 gallon tanks on a 4 foot stand. Dual intakes, 20 gallons, 7 x 13.5 in skimmer chamber.
RS-200 for 55 to 120 gallon systems. Dual intakes, 25 gallons, four dosing holders and a wider return chamber.
RS-300 for 90 to 180 gallon displays on a 6 foot stand. Dual intakes, 35 gallons and a 10 gallon refugium.
Measure the inside of the cabinet door and floor first, then check your skimmer footprint against the skimmer chamber and your return pump against the return chamber. The skimmer chamber is 7 in front to back on the RS-100, RS-200 and RS-300, so pick a skimmer whose base fits inside that.
Setup Tips
Rinse the sump and sock, set it on a level surface and plumb the drain lines into the intake. Slide the water level plate to the depth your skimmer calls for before you fill. Run the return pump with the display full and mark the return chamber level, then top off to that line during evaporation. Change the sock every few days, keep a chaeto ball and a light in the refugium section, and use the dosing holders to keep supplement lines from sliding into the pump.
Recommended Pairings
- Simplicity DC Return Pump, controllable flow sized to your overflow.
- Reef Octopus Classic INT, Simplicity DC In-Sump or IceCap K3-130INT skimmers for the skimmer chamber.
- AI Prime 16 Fuge or Maxspect Jump MJ-L230R to light the refugium section.
- Chaetomorpha or Dinkins Clean Chaeto, plus Bulldawg Copepod Mix to seed it.
- Eshopps Power Flow or Eshopps Eclipse overflow boxes to feed the sump.
- Eshopps Aqua-Fuge if you want a dedicated dual-channel refugium sump instead.
FAQ
Is this the new 5th Generation?
Yes. The white body with blue trim, the adjustable water level plate, the built-in probe and dosing holders and the 14 in height are all 5th Gen. The clear 4th Gen Reef Sump has been discontinued.
Does it come with a pump or skimmer?
No. The sump ships with one rectangular filter sock. Add a return pump and an in-sump skimmer to complete it.
What filter sock does it use?
An Eshopps rectangular sock. One is included, and replacements are an Eshopps item rather than a standard 4 in round sock.
Do I have to use the refugium section?
No. Leave it empty, fill it with rubble or media, or grow chaeto in it. It is a section of the sump, not a separate unit.
Will it work on a freshwater tank?
Yes. Any sump-based system works, and the refugium section can hold plants or extra biological media.
Why pickup only?
A sump this size is heavy and fragile, so we hold it for in-store pickup instead of shipping it.
