Eshopps Eclipse Slim Drilled Overflow Box
The Eshopps Eclipse is a low-profile drilled overflow for tanks that deserve a cleaner look than a hang-on box. A slim black weir box sits inside the tank and takes up just 1.25 in of depth, water passes through a 1.5 in transfer bulkhead in the back glass into the clear external box, and two or three 1 in drains carry it down to the sump. The drilling template and 60 mm hole saw are in the box, so you can convert a standard tank yourself. Browse our sumps, skimmers and filtration and the return pumps and plumbing that finish the job. Prefer not to drill? The Eshopps Power Flow hang-on overflow does the same job with a U-tube siphon.
How It Works
Water spills over the 1/4 in teeth of the internal box, which keeps surface film moving and holds the tank's water line at a fixed height. It flows through the transfer bulkhead into the external box on the back of the tank, then out through the 1 in drain bulkheads in the bottom. With two drains you can run a Herbie setup: one full siphon drain that runs silent and one open emergency drain that only carries water if the siphon clogs. The Eclipse L adds a third drain for a Bean Animal configuration, a siphon, an open channel and an emergency, which is the quietest and safest drain arrangement in the hobby.
Features on Every Model
Choose Your Model
Select a model in the tab section below for its full spec sheet.
| Spec | Eclipse S | Eclipse M | Eclipse L |
|---|---|---|---|
| Tank size | Up to 75 gal | Up to 100 gal | 100 to 150 gal |
| Max flow | 600 GPH | 800 GPH | 1,000 GPH |
| Internal box (L x D x H) | 6 x 1.25 x 6 in | 8 x 1.25 x 6 in | 12 x 1.25 x 6 in |
| External box (L x D x H) | 6 x 3 x 6 in | 8 x 3 x 6 in | 12 x 3 x 6 in |
| 1.5 in transfer bulkheads | 1 | 1 | 2 |
| Holes to drill (60 mm) | 1 | 1 | 2 |
| 1 in drain bulkheads | 2 | 2 | 3 |
| Drain method | Herbie | Herbie | Herbie or Bean Animal |
| Item number | 95860 | 95861 | 95862 |
Detailed Model Specifications
Click a model below to view its full specification sheet.

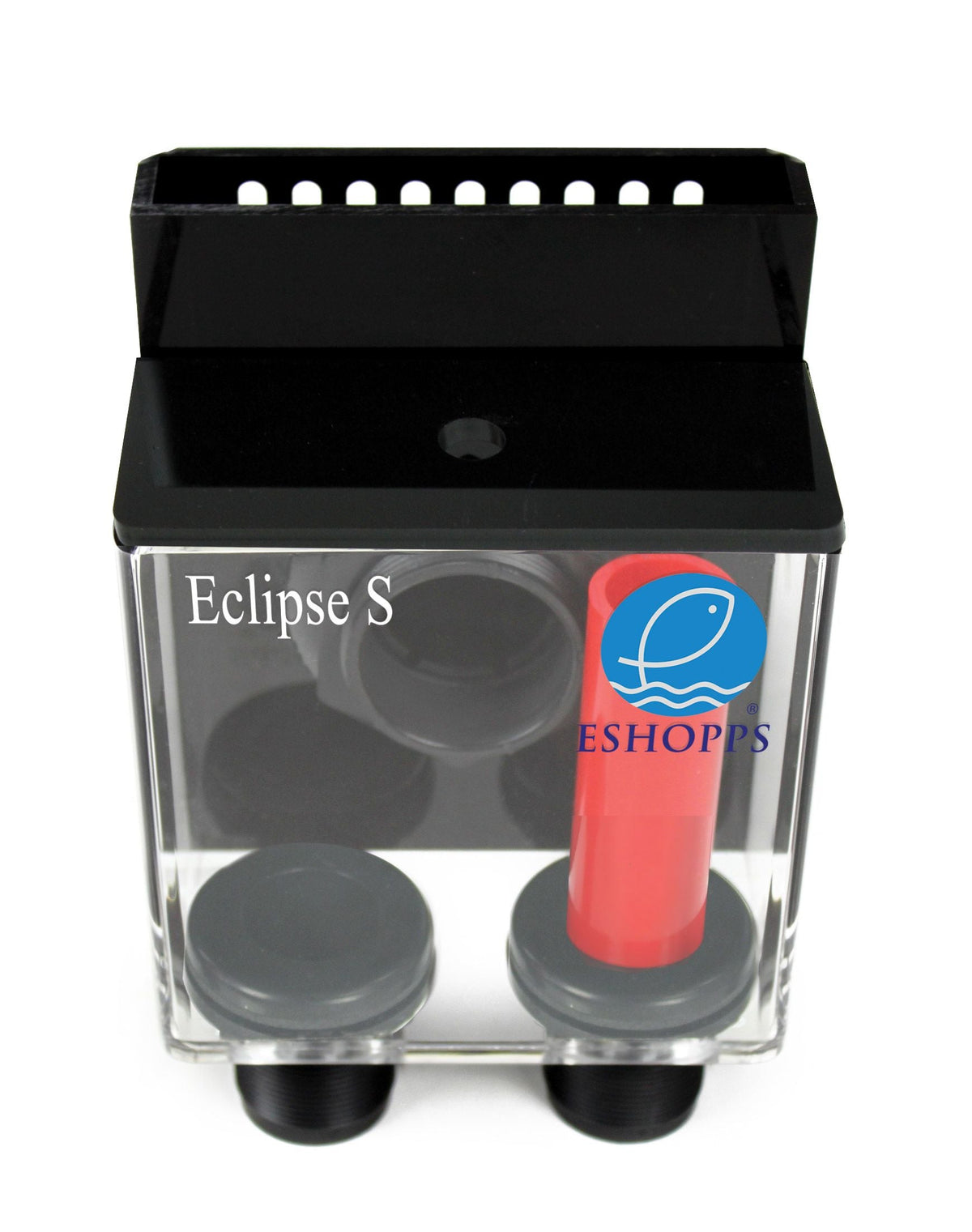

Eclipse S · Up to 75 gal · 600 GPH
The compact Eclipse for tanks up to 75 gallons. One 60 mm hole, one 1.5 in transfer bulkhead and two 1 in drains give you a silent Herbie style drain with an emergency backup on a 6 in wide box that all but disappears behind the tank.
| Specification | Value |
|---|---|
| Item number | 95860 |
| Tank size | Up to 75 gal (284 L) |
| Max flow rate | 600 GPH (2,271 LPH) |
| Internal box (L x D x H) | 6 x 1.25 x 6 in (152 x 32 x 152 mm) |
| External box (L x D x H) | 6 x 3 x 6 in (152 x 76 x 152 mm) |
| Transfer bulkhead | One 1.5 in transfer bulkhead (one 60 mm hole) |
| Drain bulkheads | Two 1 in slip drain bulkheads |
| Drain method | Herbie (siphon plus emergency) |
| Weir teeth | 1/4 in |
| Material | Acrylic, black internal box, clear external box with lid |
| In the box | Internal box, external box with lid, one 1.5 in transfer bulkhead, two 1 in drain bulkheads, red PVC standpipe, drilling template, 60 mm hole saw |

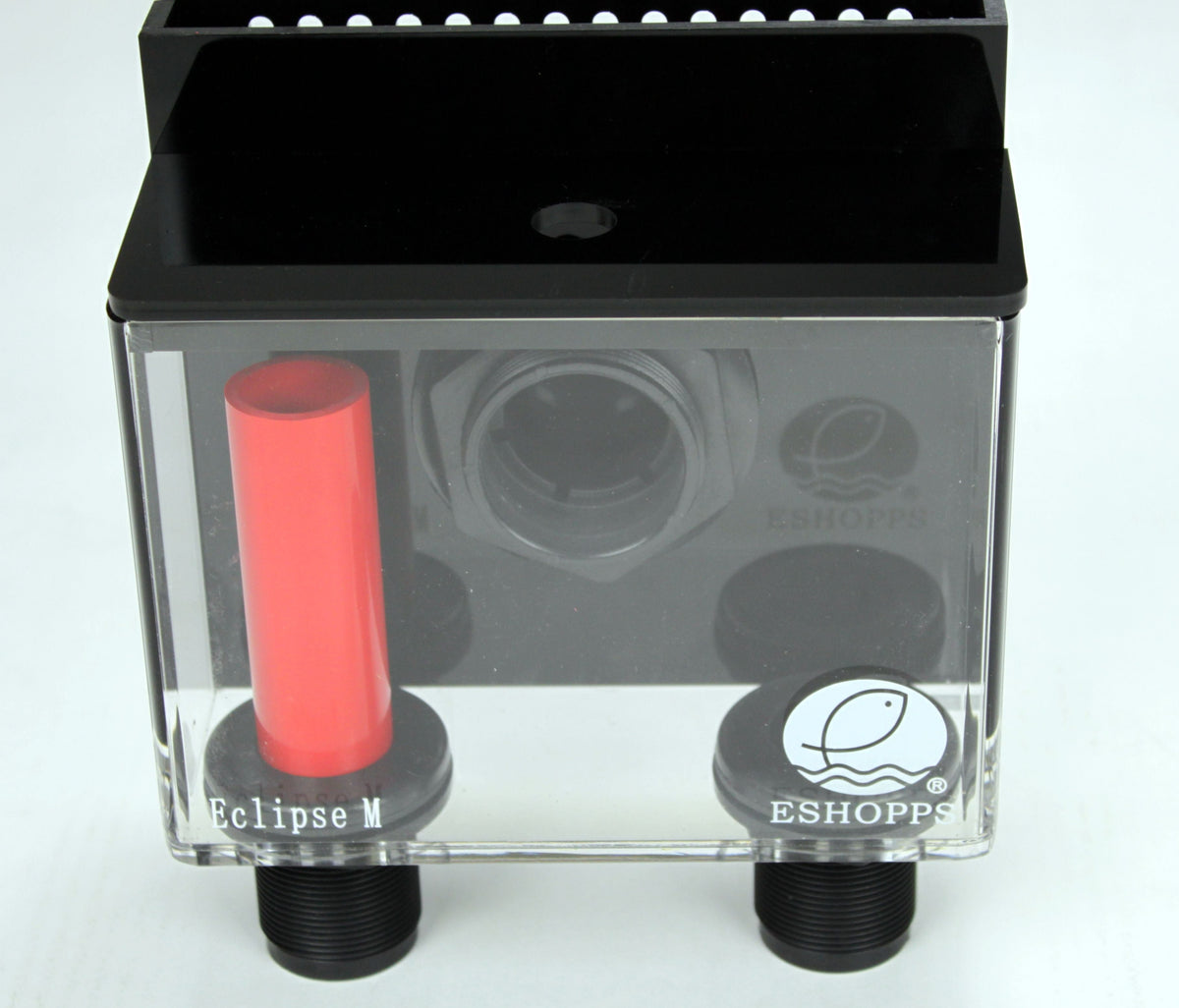

Eclipse M · Up to 100 gal · 800 GPH
The mid-size Eclipse for tanks up to 100 gallons. Same single 60 mm hole and two-drain Herbie layout as the S, with an 8 in weir that passes up to 800 GPH for a 4 foot reef or a heavily stocked freshwater display.
| Specification | Value |
|---|---|
| Item number | 95861 |
| Tank size | Up to 100 gal (378 L) |
| Max flow rate | 800 GPH (3,028 LPH) |
| Internal box (L x D x H) | 8 x 1.25 x 6 in (203 x 32 x 152 mm) |
| External box (L x D x H) | 8 x 3 x 6 in (203 x 76 x 152 mm) |
| Transfer bulkhead | One 1.5 in transfer bulkhead (one 60 mm hole) |
| Drain bulkheads | Two 1 in slip drain bulkheads |
| Drain method | Herbie (siphon plus emergency) |
| Weir teeth | 1/4 in |
| Material | Acrylic, black internal box, clear external box with lid |
| In the box | Internal box, external box with lid, one 1.5 in transfer bulkhead, two 1 in drain bulkheads, red PVC standpipe, drilling template, 60 mm hole saw |

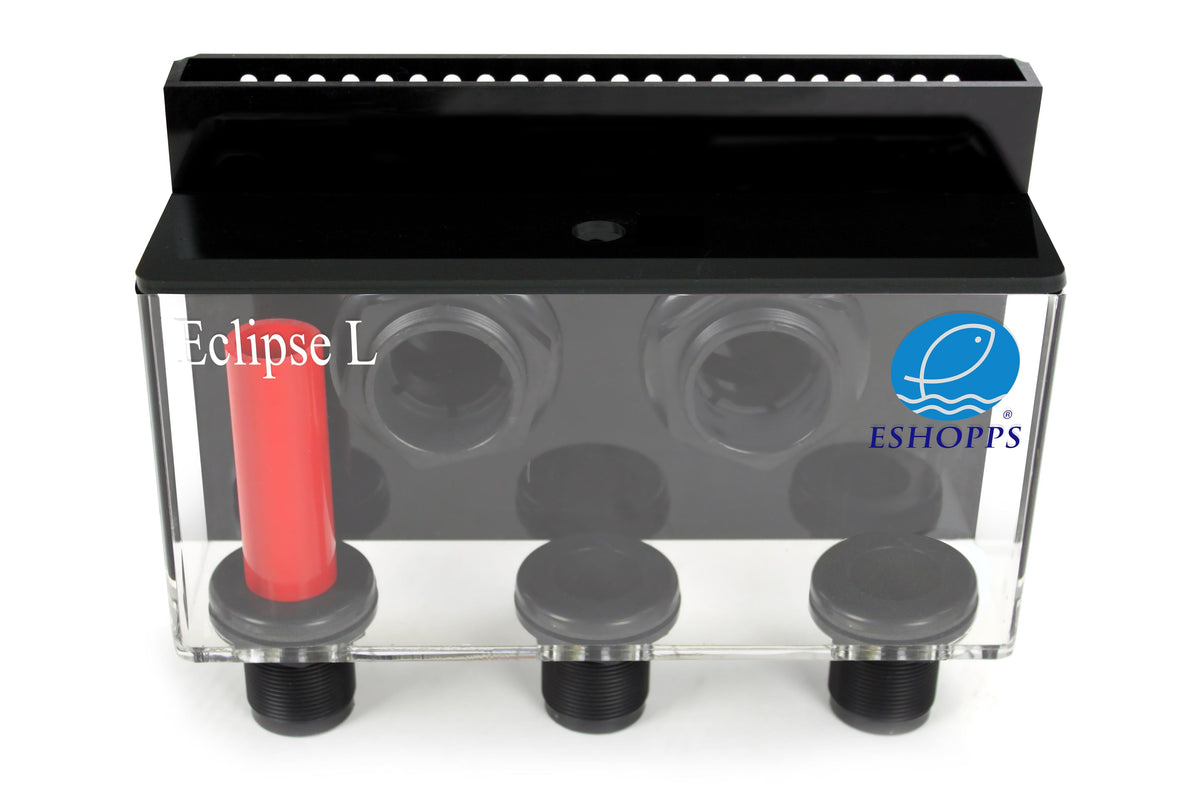

Eclipse L · 100 to 150 gal · 1,000 GPH
The full-size Eclipse for 100 to 150 gallon tanks. A 12 in weir feeds two 1.5 in transfer bulkheads, so plan on two 60 mm holes, and three 1 in drains let you plumb a true Bean Animal stack for the quietest, safest drain in the hobby.
| Specification | Value |
|---|---|
| Item number | 95862 |
| Tank size | 100 to 150 gal (378 to 568 L) |
| Max flow rate | 1,000 GPH (3,785 LPH) |
| Internal box (L x D x H) | 12 x 1.25 x 6 in (305 x 32 x 152 mm) |
| External box (L x D x H) | 12 x 3 x 6 in (305 x 76 x 152 mm) |
| Transfer bulkhead | Two 1.5 in transfer bulkheads (two 60 mm holes) |
| Drain bulkheads | Three 1 in slip drain bulkheads |
| Drain method | Herbie or Bean Animal (siphon, open channel and emergency) |
| Weir teeth | 1/4 in |
| Material | Acrylic, black internal box, clear external box with lid |
| In the box | Internal box, external box with lid, two 1.5 in transfer bulkheads, three 1 in drain bulkheads, red PVC standpipe, drilling template, 60 mm hole saw |
Which Model Is Right for You?
Eclipse S for tanks up to 75 gallons with a return pump moving up to 600 GPH at your sump-to-tank height.
Eclipse M for tanks up to 100 gallons, same single hole and two-drain layout, up to 800 GPH.
Eclipse L for 100 to 150 gallon tanks. Two transfer bulkheads, three drains and up to 1,000 GPH, with the option of a Bean Animal stack.
Size to the return pump, not just the tank. Check the pump's flow at your real head height, keep it under the overflow rating, and remember the siphon line needs a gate valve (not included) to tune a Herbie or Bean Animal drain.
Drilling and Installation Tips
Drill before the tank is set up, or drain it fully first. Tape the template to the outside of the back glass at the height it indicates, keep the hole saw wet and let it cut at low speed with light pressure. Deburr and dry the hole, fit the transfer bulkhead with its gasket on the inside of the glass and tighten by hand only. Hang the external box on the bulkhead, plumb the drains with 1 in PVC, start the return pump slowly and adjust the siphon valve until the water in the external box holds steady with the emergency drain dry.
Recommended Pairings
- Simplicity DC Return Pump, controllable flow you can dial in under the overflow rating.
- Trigger Systems Titanium 34 Sump or IceCap 15 Reef Sump V2 for the cabinet below.
- Aquarium Filter Sock to catch debris where the drains enter the sump.
- Loc-Line 3/4 in Nozzles to aim the return flow.
- Eshopps Power Flow if you would rather hang an overflow than drill.
FAQ
Does my tank have to be drilled?
Yes. The Eclipse needs one 60 mm hole in the back glass (two on the Eclipse L). The template and hole saw are included, and only non-tempered glass can be drilled.
Herbie or Bean Animal?
Herbie uses two drains, a valved full siphon and an open emergency, and works on every Eclipse. Bean Animal adds a third open channel drain for the quietest and most forgiving setup and needs the three drains of the Eclipse L.
What pipe do the drains take?
The drain bulkheads are 1 in slip, so 1 in PVC glues straight in. Use a barb adapter if you prefer flexible tubing to the sump.
Is a gate valve included?
No. A gate valve on the siphon line is what tunes a Herbie or Bean Animal drain, so add one to your plumbing list.
What happens in a power outage?
The tank drains only down to the teeth of the internal box, then stops. Leave room in the sump for that volume plus what siphons back through the return line.
Can I use it on a freshwater tank?
Yes. Any sump-based system works, fresh or salt.
