Klir Di-7 V2 Drop-In Fleece Filter

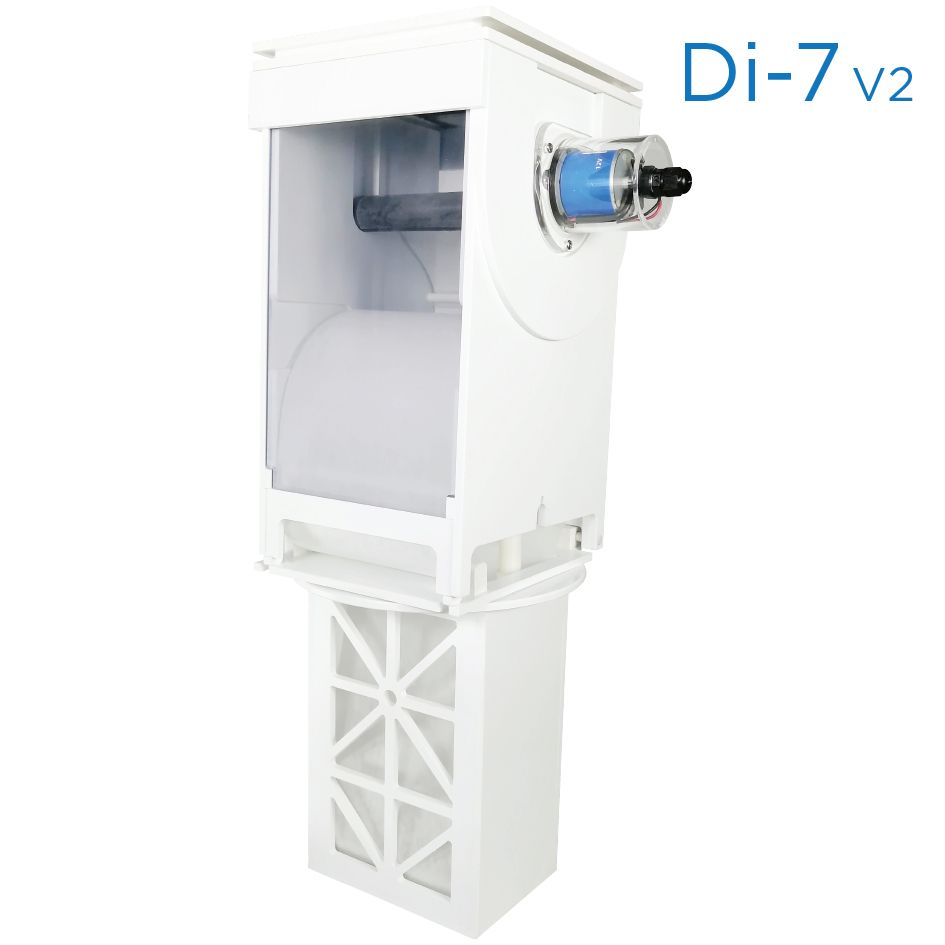

The Klir Di-7 V2 Drop-In Automatic Fleece Filter replaces the 7 inch filter socks in your sump with a roll of 50-micron fleece that changes itself. Drop it into the sock tray, plug in the V2 smart controller and forget about socks: as the fleece loads with waste and the water level creeps up, the magnetic optical sensor tells the geared motor to advance a fresh section, and the dirty fleece rolls up out of the water before it can break down into nutrients. No plumbing, no extra sump space, and months between roll changes. Have a 4 inch tray instead? See the Klir Di-4 V2. Keep a replacement fleece roll on the shelf and browse the rest of our filter media.

Why You'll Love It

• Drop-in, no plumbing: it sits in a standard 7 inch sock tray, or on the Klir bracket if your sump has no tray, and takes no extra footprint.
• Finer than a sock: 50-micron fleece pulls out particles most felt socks let through, for noticeably clearer water.
• Removes waste before it dissolves: detritus is lifted out of the water on the roll instead of rotting in a sock, which helps keep nitrate and phosphate down.

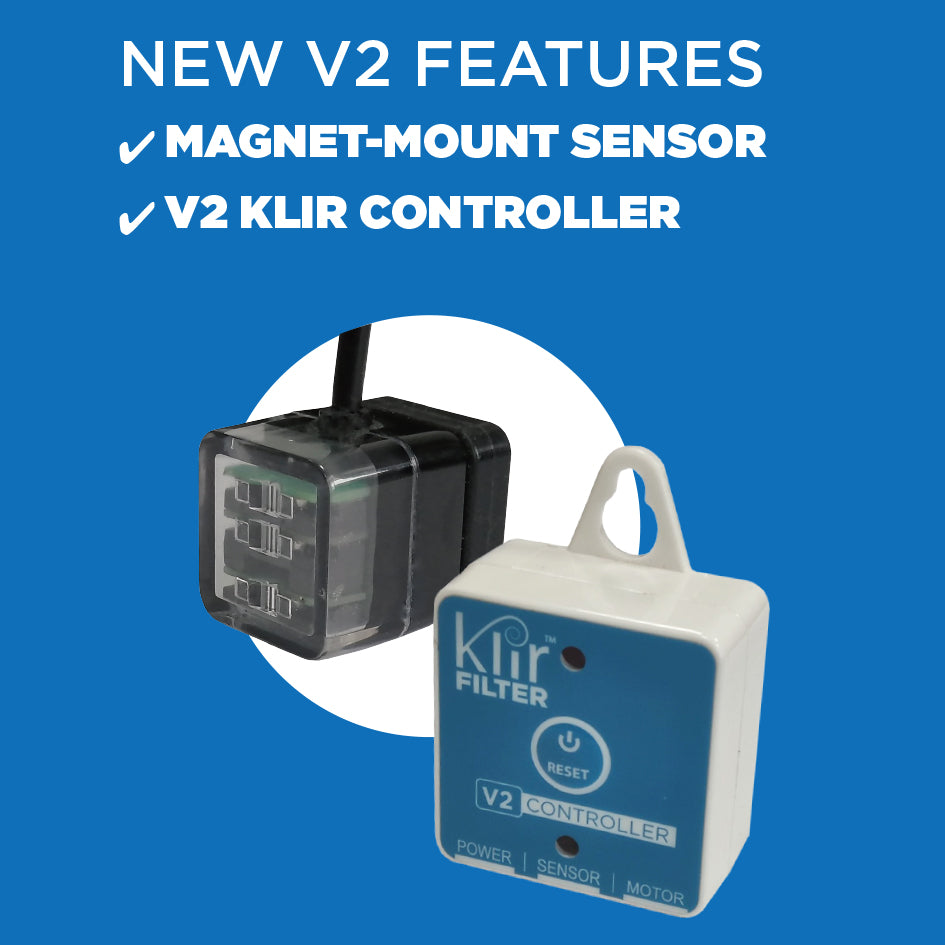

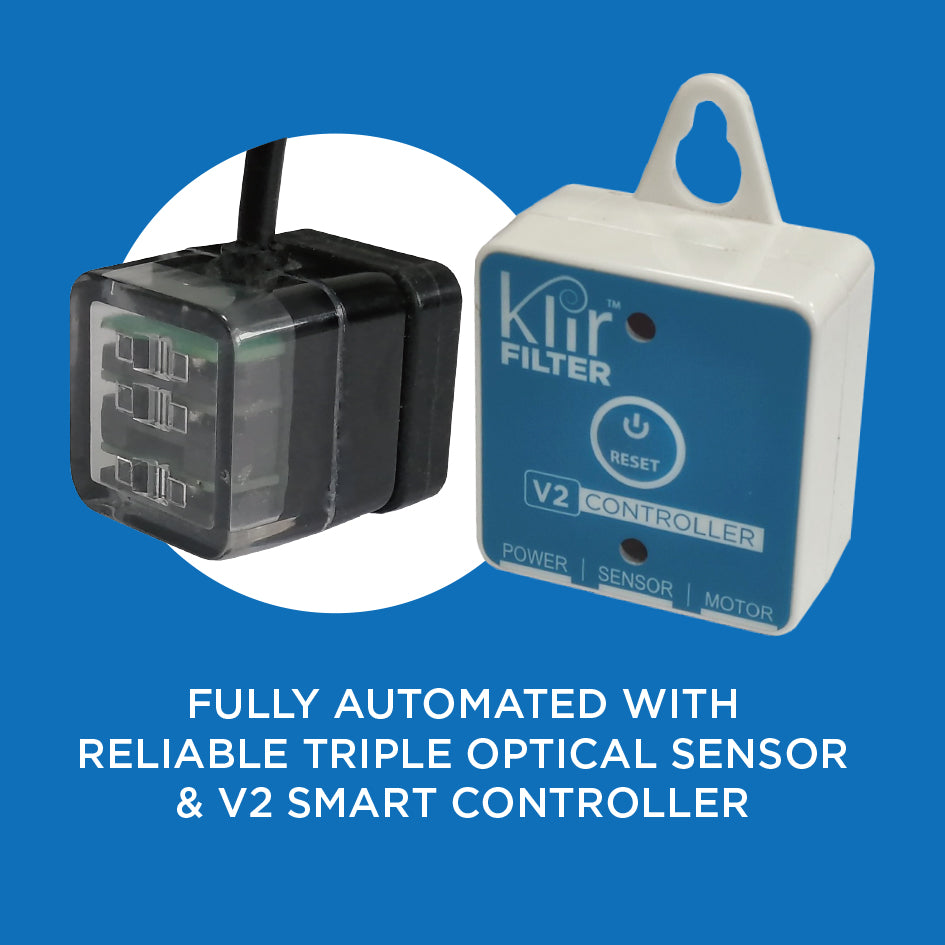

• V2 smart controller and triple optical sensor: the magnet-mount sensor watches the water level and advances only as much fleece as the load demands.

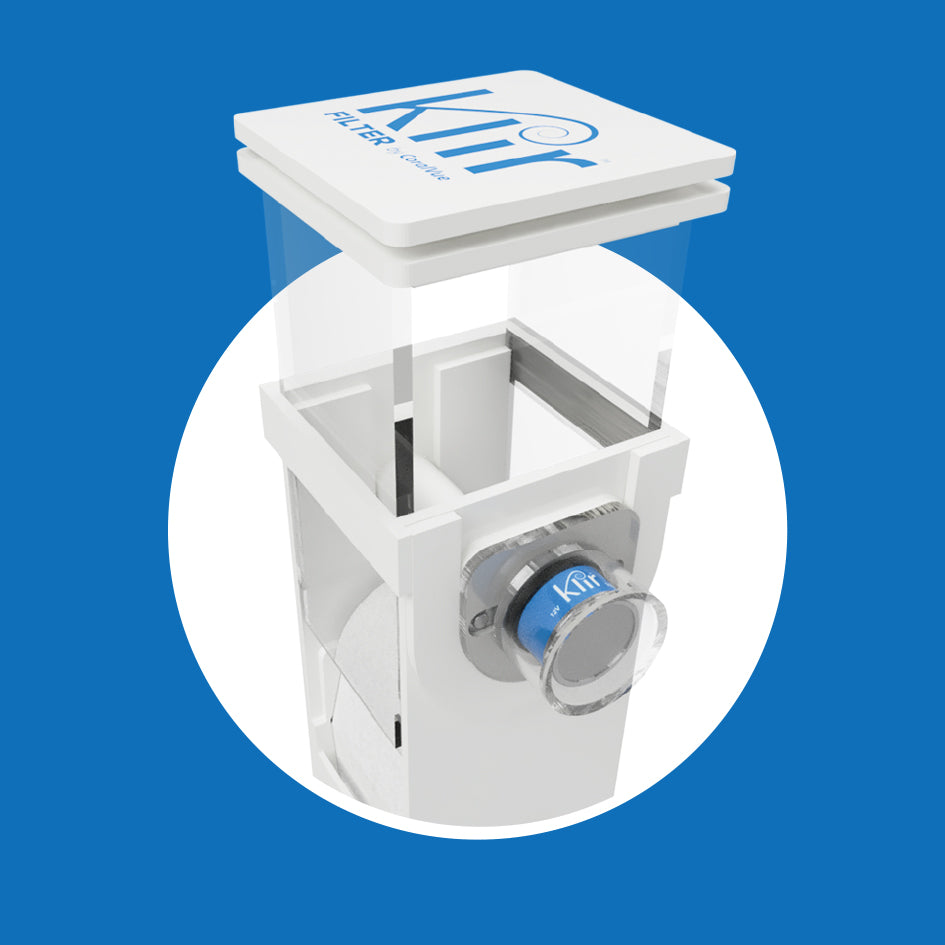

• Carbon insert included: the removable lid plate holds activated carbon so the outflow is polished as well as strained.
• Months of hands-off filtration: a starter roll of 50-micron fleece is in the box; how long it lasts depends on bioload, feeding and flow.

How It Works

Water from the drain flows onto the fleece the same way it would into a sock. As the fleece clogs, the water level in the tray rises until it reaches the optical sensor, which starts the 12 V geared motor for a few seconds. Clean fleece rolls into the flow path, the level drops, and the motor stops. Swapping a spent roll takes a minute: lift the body, drop in a new roll, thread it and set it back in the tray.

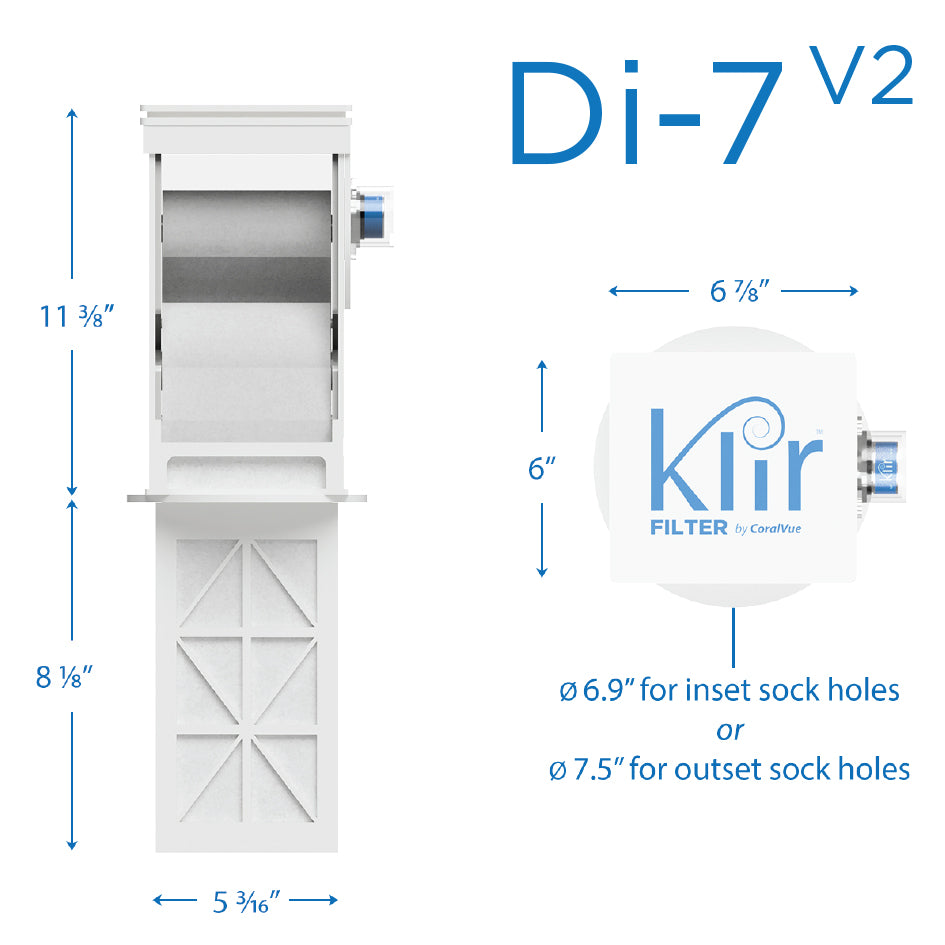

Sump Requirements

• A sump with a 7 inch sock tray, or the Klir Di-7 filter bracket (sold separately)
• At least 1.5 inches of water depth above the sock tray
• At least 8.125 inches of clearance below the sock tray
• A 7.125 inch opening in the sump lid directly above the sock position, if the sump has a lid

Specifications

What's Included

• Klir Di-7 V2 drop-in automatic fleece filter main body
• Two swappable mount collar rings
• Version 2 smart micro-controller module
• Magnetic-mount triple optical water level sensor
• Starter roll of 50-micron fine filter fleece
• Removable carbon insert plate lid with activated carbon
• 12 V DC high-torque geared motor
• 120 V to 12 V AC power adapter

Recommended Pairings

• Klir 50 Micron Fleece Roll, the replacement roll
• Klir Flow Diverting Cap, to spread a hard drain stream across the fleece
• Klir Di-4 V2 Drop-In Fleece Filter, the version for 4 inch sock trays
• Red Sea 225 Micron Felt Filter Sock, if you want to keep a sock as backup
• More filter media

FAQ

Will it fit my sump? If your sump has a 7 inch sock tray with 1.5 inches of water above it and about 8 inches of clearance below, yes. Measure the lid opening too; it needs 7.125 inches directly above the tray. Sumps without a tray can use the Klir bracket.

How long does a roll last? Anywhere from several weeks to a few months. Heavy feeding, high bioload and a sandbed that gets stirred all shorten it; a lightly stocked reef stretches it.

What happens if the power goes out? The fleece stops advancing but water keeps flowing through the last clean section. If the fleece fully clogs, the water overflows the tray into the sump the way a clogged sock would, so nothing floods.

Is it noisy? The motor runs for only a few seconds at a time. Most owners hear the drain, not the Klir.
